M1RXK-4036J

Active

IDC CABLE - MPR40K/MC40G/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Datasheet +1

M1RXK-4036J

Active

IDC CABLE - MPR40K/MC40G/X

Deep-Dive with AI

Documents3365 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1RXK-4036J	M1RXK Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Plug to Cable	Plug to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	40	14 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1RXK Series

IDC CABLE - MPR14K/MC14M/X

Part	Number of Rows	Features	Connector Type	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Shielding	Length [x]	Length [x]	Contact Finish	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Positions
3M M1RXK-1436R	2	Polarizing Key, Strain Relief	Plug to Cable	14	Multiple, Ribbon	0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-2436J	2	Polarizing Key, Strain Relief	Plug to Cable	24		0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-5036R	2	Polarizing Key, Strain Relief	Plug to Cable	50	Multiple, Ribbon	0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-6436J	2	Polarizing Key, Strain Relief	Plug to Cable	64		0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-3036R	2	Polarizing Key, Strain Relief	Plug to Cable	30	Multiple, Ribbon	0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-2636R	2	Polarizing Key, Strain Relief	Plug to Cable	26	Multiple, Ribbon	0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-2036J	2	Polarizing Key, Strain Relief	Plug to Cable	20		0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-2640K	2	Polarizing Key, Strain Relief	Plug to Cable	26	Multiple, Twisted Pair (Flat)	0.76 Ám	30 Áin	IDC	Unshielded	3.34 ft	1.02 m	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-6036J	2	Polarizing Key, Strain Relief	Plug to Cable	60		0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm
3M M1RXK-1636R	2	Polarizing Key, Strain Relief	Plug to Cable		Multiple, Ribbon	0.76 Ám	30 Áin	IDC	Unshielded	3 ft	914.4 mm	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.66
		10	$ 22.89
		25	$ 20.74
		50	$ 19.28
		100	$ 17.97
		250	$ 16.41
		500	$ 15.37

Description

General part information

M1RXK Series

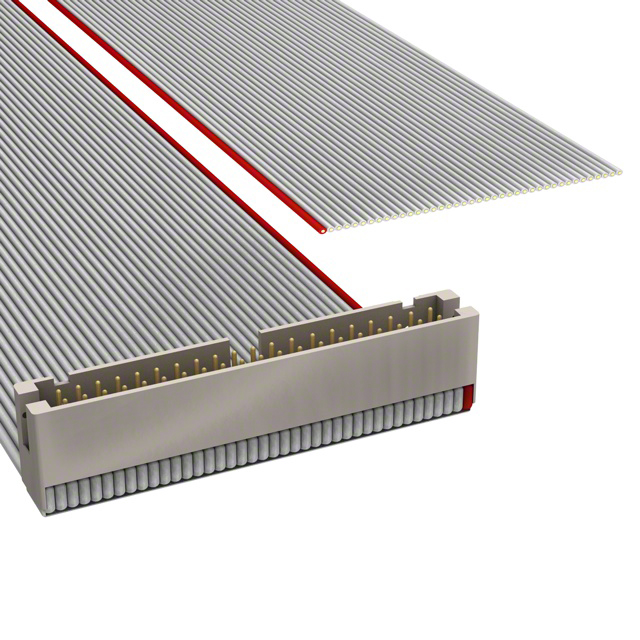

40 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
