31-421.036

Active

EAO

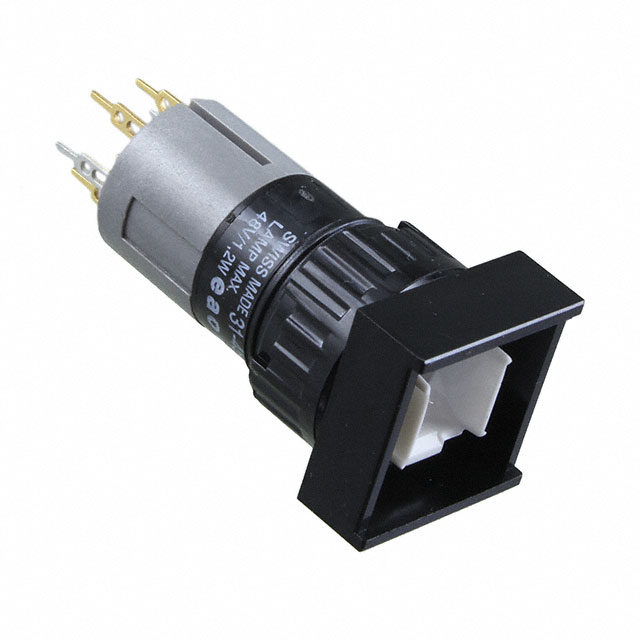

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, DPST-NO, MOMENTARY, RECTANGULAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

31-421.036

Active

EAO

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, DPST-NO, MOMENTARY, RECTANGULAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	31-421.036

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

31-421 Series

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, DPST-NO, MOMENTARY, RECTANGULAR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection	Voltage Rating - AC	Actuator Marking	Voltage Rating - DC	Mounting Type	Mechanical Life	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Type	Current Rating (Amps)	Actuator Type
EAO 31-421.036	55 °C	-25 °C	SPST-NO	IP40	42 V	No Marking	42 V	Panel Mount, Front	5000000 Cycles	PC Pin, Solder Lug	16 mm	Off-Mom	Standard	100 mA	Rectangular, Button (Not Included)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.18
		10	$ 35.66
		100	$ 30.48
Newark	Each	1	$ 39.60
		5	$ 36.43
		10	$ 33.66
		25	$ 32.08
		50	$ 30.49

Description

General part information

31-421 Series

The 31-421.036 is a double-pole double-throw (DPDT) illuminated Pushbutton Switch with a polyetherimide actuator and solder terminal. The 31 series switch equipped with low level switching elements, momentary function and 2NO contacts. It has gold-plated contacts. The universal terminals permit these units to be mounted on printed circuit boards (PCB).
