Description
General part information

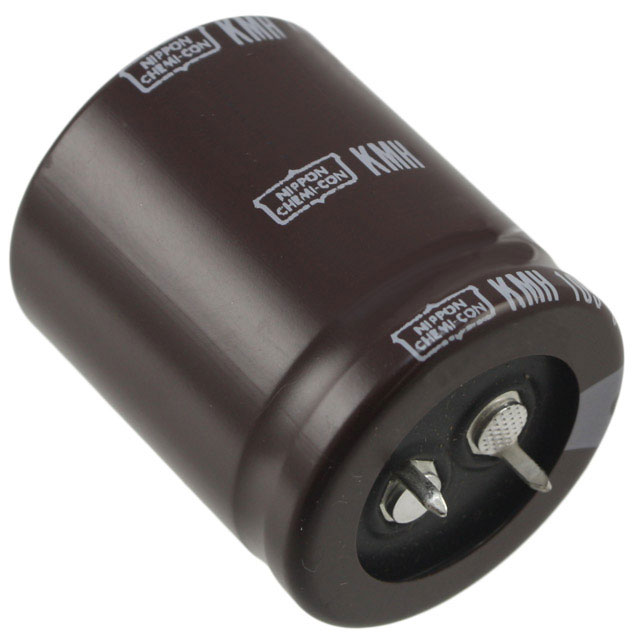

SMH16VN183M22X40T2
18000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 37mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SMH16VN183M22X40T2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 18000 µF |
| ESR (Equivalent Series Resistance) | 37 mOhm |
| Height - Seated (Max) | 1.575 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 4.0176 A, 3.72 A |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
