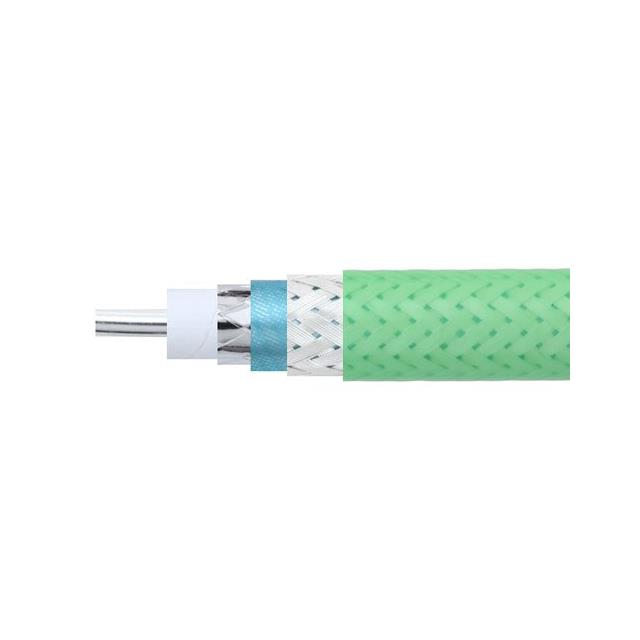

LL142-BULK
ActiveFairview Microwave
CBL COAX GREEN FEP JACKET 1=1'
LL142-BULK
ActiveFairview Microwave
CBL COAX GREEN FEP JACKET 1=1'
Description
General part information
LL142-BULK
Coaxial Cable 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LL142-BULK |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.145 in |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.195 in |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Green |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Material | Silver Coated, Copper, Aluminum |
| Shield Type | Braid, Foil |
| Velocity of Propagation (VoP) | 80 % |
