1427TBC

Active

Hammond Manufacturing

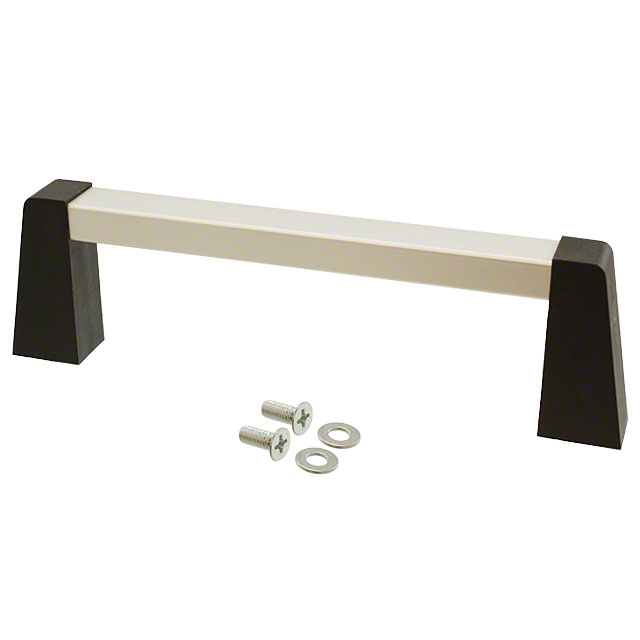

HANDLE 5"MOUNT/1.64"HIGH BLK/CLR

Search across all available documentation for this part.

Active

Hammond Manufacturing

HANDLE 5"MOUNT/1.64"HIGH BLK/CLR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1427TBC	1427 Series

Accessory Type	-	Key Ring Kit, Locking Kit, DIN Rail Clip, Cord Grip, Bail, Feet, Hinges
For Use With/Related Products	-	1551 Series, 1439 Series, 1427 Series, 1420 Series, 1590 Series
Height	-	4.83 mm
Height	-	24.99 - 30.51 mm
Height	-	0.984 - 1.201 in
Height [z]	41.66 mm	15.88 - 68.58 mm
Height [z]	1.64 in	0.19 - 2.7 in
Length - Center to Center	-	6 - 88.9 mm
Length - Center to Center	-	3 in
Length - Center to Center	-	152.4 mm
Length - Center to Center [x]	127 mm	31.8 - 421.64 mm
Length - Center to Center [x]	5 in	1.252 - 16.6 in
Material	Polyamide, Aluminum	Polyamide, Aluminum, Steel, Chrome Plated, Vinyl, Polycarbonate, Steel, Black Coating, Brass, Black Coating, Brass, Nickel Finish, Aluminum, Black Coating, Polystyrene
Mounting Type	Screw Holes, Back	Screw Holes, Back, Screw Holes, Front, Bolt, Screw
Thread/Screw/Hole Size	M4	M4, #6-32, #4-40, #10-32, #8-32
Type	Type, Drawer	Type, Drawer, Instrumentation, Folds Flat, Inset, Hinged Ends

HANDLE ALUMINUM BLK MTG CTR 5"

Part	Thread/Screw/Hole Size	Material	Mounting Type	Type	Height [z]	Height [z]	Length - Center to Center [x]	Length - Center to Center [x]	For Use With/Related Products	Accessory Type	Length - Center to Center	Height
Hammond Manufacturing 1427TBB	M4	Aluminum, Polyamide	Screw Holes, Back	Drawer, Type	41.66 mm	1.64 in	127 mm	5 in
Hammond Manufacturing 1427E	#6-32	Steel, Chrome Plated	Screw Holes, Back	Instrumentation	25.4 mm	1 in	50.8 mm	2 in
Hammond Manufacturing 1427KR									1551 Series	Key Ring Kit
Hammond Manufacturing 1427B	#4-40	Steel, Chrome Plated	Screw Holes, Back	Instrumentation	15.88 mm	0.625 in	31.8 mm	1.252 in
Hammond Manufacturing 1427NGC	M4	Aluminum, Polyamide	Screw Holes, Back	Drawer, Type	41.66 mm	1.64 in		3.5 in			88.9 mm
Hammond Manufacturing 1427BK									1439 Series	Locking Kit
Hammond Manufacturing 1427C1	#10-32	Steel, Chrome Plated	Screw Holes, Back	Instrumentation	32.99 mm	1.299 in	101.6 mm	4 in
Hammond Manufacturing 1427DIN100M									1427 Series	DIN Rail Clip
Hammond Manufacturing 1427DIN42M									1427 Series	DIN Rail Clip
Hammond Manufacturing 1427J		Vinyl	Screw Holes, Front	Folds Flat		0.19 "	184.15 mm	7.25 in				4.83 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Drawer, Type Handle Aluminum, Polyamide Screw Holes, Back
