Description
General part information
MOT-I-81508-38-51

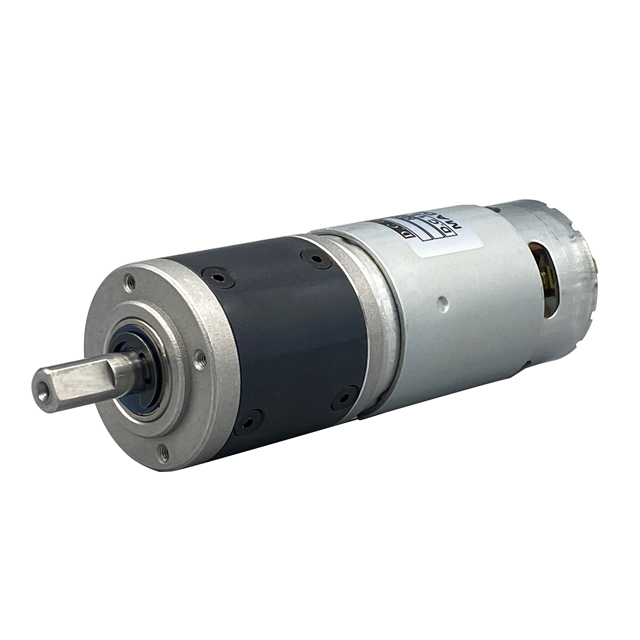

Brushed DC Motor Gearmotor 350 RPM 70W 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81508-38-51 |
|---|---|
| Diameter - Shaft | 0.315 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 51 |
| Length - Shaft and Bearing | 5.413 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 1.22 in |
| Power - Rated | 70 W |
| RPM | 350 RPM |
| Size / Dimension Diameter | 1.496 in |
| Size / Dimension Shape | Round |
| Torque - Max Momentary (mNm) | 9806.65 mNm |
| Torque - Max Momentary (oz-in) | 1388.74 oz-in |
| Torque - Rated (mNm) | 1912.3 mNm |
| Torque - Rated (oz-in) | 270.8 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VAC |
