PE70A5015
ActivePasternack
1 MHZ TO 43.5 GHZ ABSORPTIVE DIG
PE70A5015
ActivePasternack
1 MHZ TO 43.5 GHZ ABSORPTIVE DIG
Description
General part information

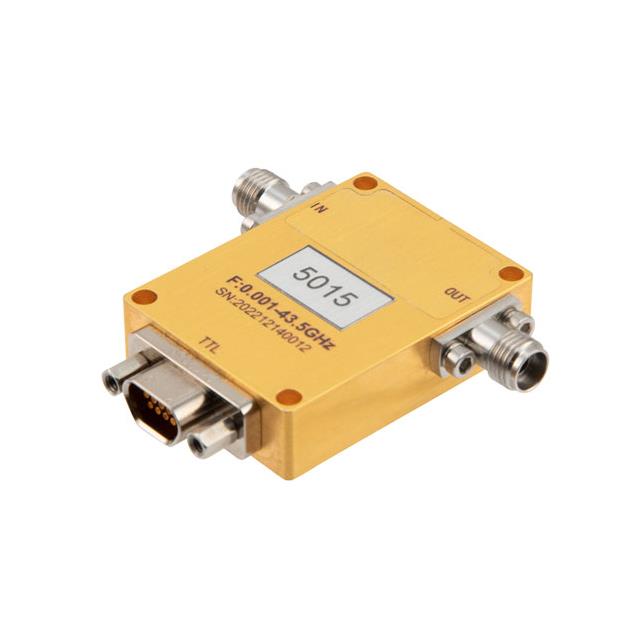

PE70A5015
RF Attenuators 31.5dB 1 MHz ~ 43.5 GHz 50 Ohms Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE70A5015 |
|---|---|
| Attenuation Value | 31.5 dB |
| Frequency Range (Max) | 43.5 GHz |
| Frequency Range (Min) | 1 MHz |
| Impedance | 50 Ohm |
| Package / Case | 2.92mm In-Line Module, Module |
| Package / Case Dimension | 2.92 mm |
| Package / Case Type | In-Line Module |
| Package Diameter | 2.92 mm |
| Package Name | In-Line Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
