8020.0602.H.PT
ActiveSCHURTER Inc.
FUSE CERM 10A 250VAC 100VDC 3AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8020.0602.H.PT
ActiveSCHURTER Inc.
FUSE CERM 10A 250VAC 100VDC 3AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8020.0602.H.PT | SUT-H-6332 Series |
|---|---|---|
| Approval Agency | UL, CSA, CE, cURus | UL, CSA, CE, cURus |
| Breaking Capacity @ Rated Voltage | 500 A | 500 A |
| Current Rating (Amps) | 10 A | 10 - 50 A |
| Fuse Type | Cartridge, Ceramic | Cartridge, Ceramic |
| Melting I˛t | - | 788 - 9908 |
| Melting I²t | - | 1058 - 9908 |
| Mounting Type | Through Hole | Through Hole, Requires Holder |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3AG, 3AB | 3AG, 3AB |
| Package / Case [x] | 1/4 | 1/4 |
| Package / Case [y] | 1-1/4 | 1-1/4 |
| Response Time | Slow Blow | Slow Blow |
| Size / Dimension | - | 1.252 in |
| Size / Dimension | - | 31.8 mm |
| Size / Dimension [diameter] | 0.27 in | 0.25 - 0.27 in |
| Size / Dimension [diameter] | 6.85 mm | 6.35 - 6.85 mm |
| Size / Dimension [x] | 1.291 " | 1.291 " |
| Size / Dimension [x] | 32.8 mm | 32.8 mm |
| Voltage Rating - AC | 250 V | 250 V |
| Voltage Rating - DC | 100 V | 70 - 100 V |
SUT-H-6332 Series
FUSE CERM 15A 250VAC 100VDC 3AB
| Part | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Response Time | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Fuse Type | Voltage Rating - DC | Current Rating (Amps) | Mounting Type | Melting I˛t | Package / Case [x] | Package / Case [y] | Package / Case | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Melting I²t | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 8020.0604.H.PT | 1.291 " | 0.27 in | 6.85 mm | 32.8 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 15 A | Through Hole | 1058 | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | |||
SCHURTER Inc. 8020.0607.H.PT | 1.291 " | 0.27 in | 6.85 mm | 32.8 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 30 A | Through Hole | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | 2475 | |||
SCHURTER Inc. 8020.0609.H.PT | 1.291 " | 0.27 in | 6.85 mm | 32.8 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 70 V | 50 A | Through Hole | 9908 | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | |||
SCHURTER Inc. 8020.0607.H | 0.25 in | 6.35 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 30 A | Requires Holder | 2475 | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | 1.252 in | 31.8 mm | |||
SCHURTER Inc. 8020.0603.H | 0.25 in | 6.35 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 12 A | Requires Holder | 788 | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | 1.252 in | 31.8 mm | |||
SCHURTER Inc. 8020.0606.H.PT | 1.291 " | 0.27 in | 6.85 mm | 32.8 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 25 A | Through Hole | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | 5275 | |||
SCHURTER Inc. 8020.0602.H.PT | 1.291 " | 0.27 in | 6.85 mm | 32.8 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 10 A | Through Hole | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | ||||
SCHURTER Inc. 8020.0605.H.PT | 1.291 " | 0.27 in | 6.85 mm | 32.8 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 20 A | Through Hole | 3540 | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | |||
SCHURTER Inc. 8020.0605.H | 0.25 in | 6.35 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 20 A | Requires Holder | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | 3540 | 1.252 in | 31.8 mm | |||
SCHURTER Inc. 8020.0604.H | 0.25 in | 6.35 mm | Slow Blow | 500 A | 250 V | Cartridge, Ceramic | 100 V | 15 A | Requires Holder | 1/4 | 1-1/4 | 3AB, 3AG | CE, CSA, cURus, UL | 85 °C | -40 °C | 1058 | 1.252 in | 31.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.44 | |
| 5 | $ 1.37 | |||
| 10 | $ 1.30 | |||
| 50 | $ 1.05 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.87 | |||
| 500 | $ 0.80 | |||
Description
General part information
SUT-H-6332 Series

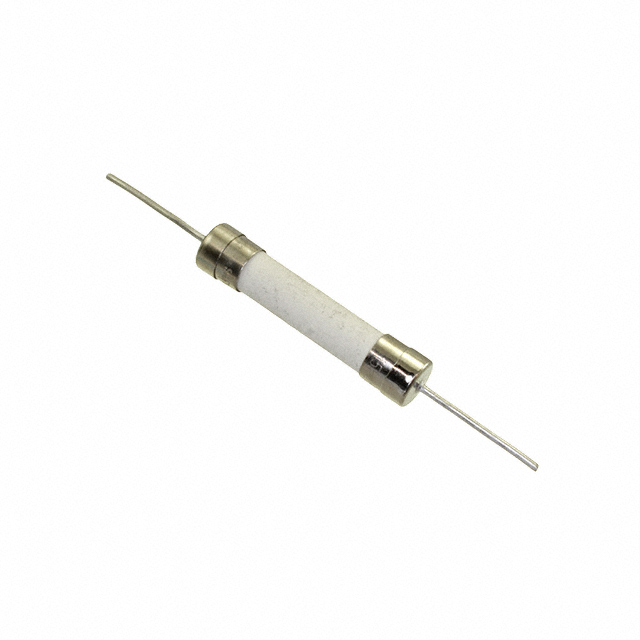

10 A 250 V AC 100 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
