9684 060500

Active

Belden Inc.

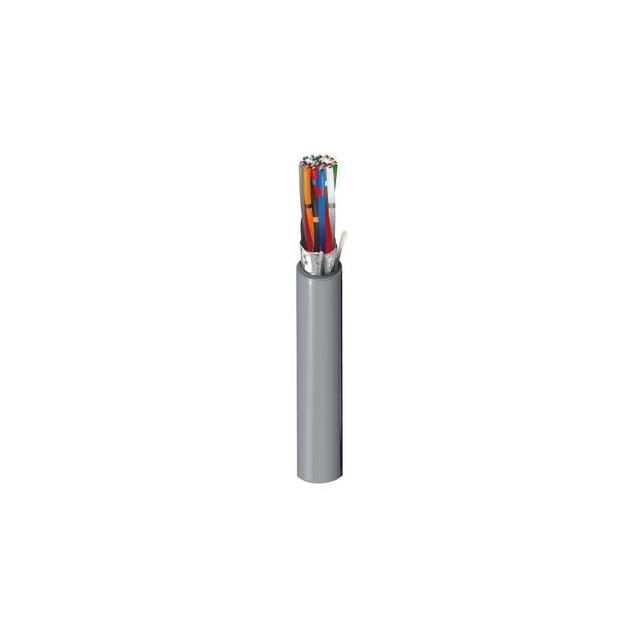

CABLE 25COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 25COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9684 060500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	11.3 mm
Jacket (Insulation) Diameter [diameter]	0.445 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Shield Coverage	Features	Wire Gauge	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length [x]	Length [x]	Number of Conductors	Shield Type	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket Color	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material
Belden Inc. 9684 060500	100 %	Drain Wire	24 AWG	Computer	11.3 mm	0.445 in	Polyethylene (PE)	500 '	152.4 m	25	Foil	UL Style 2919	32 AWG	7	Aluminum	Chrome	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	-20 C	80 C	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 8.29

General part information

25 Conductor Multi-Conductor Cable Chrome 24 AWG Foil 500.0' (152.4m)
