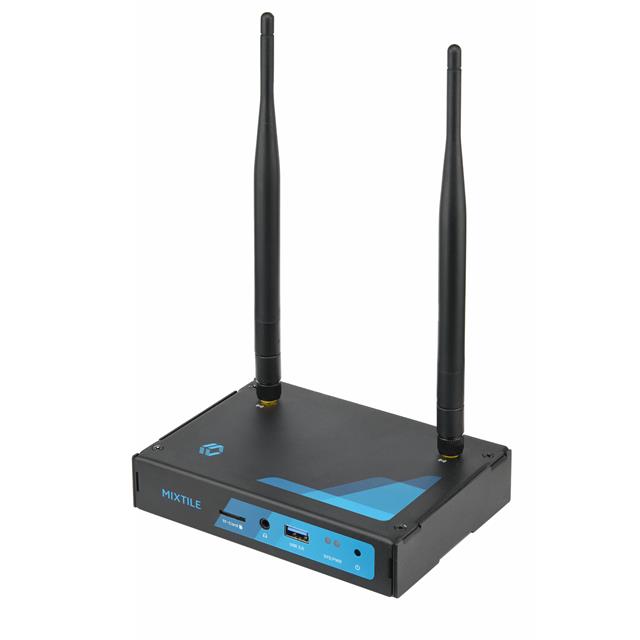

IEC-EDGE2-0216

Active

Mixtile Limited

SBC 2.0GHZ 4 CORE 2GB RAM

Search across all available documentation for this part.

Active

Mixtile Limited

SBC 2.0GHZ 4 CORE 2GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

SBC 2.0GHZ 4 CORE 4GB RAM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Cooling Type	Number of Cores	Analog Input:Output [custom]	Analog Input:Output [custom]	Power (Watts)	Digital I/O Lines	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Speed	Ethernet	Watchdog Timer	Core Processor	USB	RAM Capacity/Installed	Video Outputs	Form Factor	Expansion Site/Bus	Storage Interface
Mixtile Limited IEC-EDGE2-0432	80 C	0 °C	Heat Sink	4	4	4	10 W	4	105 mm	4.134 "	148 mm	5.827 in	2 GHz	GbE (1)		Rockchip RK3568, Quad-Core-A55	USB 3.0 (3)	4 GB	HDMI 2.0	Desktop	ADC, CAN, I2C, RS-485, SPDIF, UART	eMMC 5.1
Mixtile Limited IEC-EDGE2-0216	80 C	0 °C	Heat Sink	4	4	4	10 W	4	105 mm	4.134 "	148 mm	5.827 in	2 GHz	GbE (2)		Rockchip RK3568, Quad-Core-A55	USB 3.0 (3)	2 GB	HDMI 2.0	Desktop	ADC, CAN, I2C, RS-485, SPDIF, UART	eMMC 5.1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Board Computer 2GHz 4 Core 2GB RAM Rockchip RK3568, Quad-Core-A55
