TR4-70SHBL250-K
ActiveMicro Connectors, Inc.

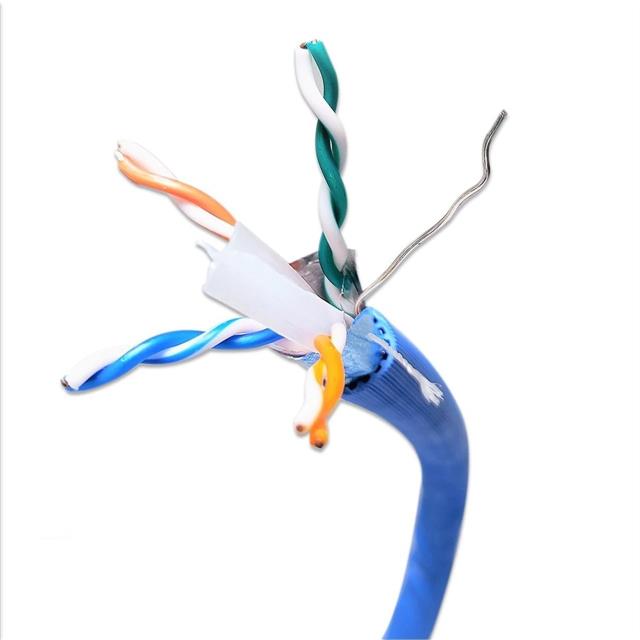

CABLE CAT6A 8COND 23AWG BLU 250'
TR4-70SHBL250-K
ActiveMicro Connectors, Inc.
CABLE CAT6A 8COND 23AWG BLU 250'
Description
General part information
TR4-70SHBL250-K
8 (4 Pair Twisted) Conductor Multi-Pair, Cat6a Cable Blue 23 AWG Foil, Braid 250.0' (76.2m)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR4-70SHBL250-K |
|---|---|
| Cable Type | Multi-Pair, Cat6A |
| Conductor Arrangement | Twisted |
| Conductor Insulation | High Density Polyethylene (HDPE), Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | 10pcs RJ45 Connectors |
| Jacket (Insulation) Diameter | 0.283 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Blue |
| Length | 250 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Ratings | Style, UL, CM |
| Shield Type | Braid, Foil |
| Usage | Video, LAN, Ethernet |
| Wire Gauge | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
