1241.6661.1130000
ActiveSCHURTER Inc.

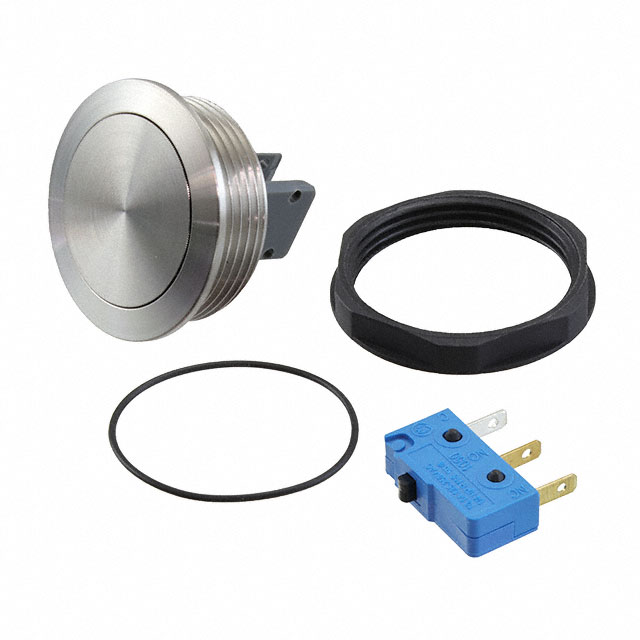

SWITCH PUSHBUTTON SPDT 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.6661.1130000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 10A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6661.1130000 | 1241.6661 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 10 A | 5 - 10 A |
| Electrical Life | 50000 Cycles | 50000 - 200000 Cycles |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 30.1 mm | 30.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal | Anti-Vandal |
| Voltage Rating - AC | 250 V | 125 - 250 V |
1241.6661 Series
SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Mechanical Life | Type | Electrical Life | Actuator Type | Actuator Marking | Color - Actuator/Cap | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Mounting Type | Current Rating (Amps) | Circuit | Voltage Rating - AC | Ingress Protection | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6661.1120000 | 1500000 Cycles | Anti-Vandal | 200000 Cycles | Button, Flush, Round | No Marking | Silver | Quick Connect - 0.110" (2.8mm) | -25 °C | 85 °C | On-Mom | Panel Mount, Front | 5 A | SPDT | 125 V | IP40 | 30.1 mm |
SCHURTER Inc. 1241.6661.1130000 | 1500000 Cycles | Anti-Vandal | 50000 Cycles | Button, Flush, Round | No Marking | Silver | Quick Connect - 0.110" (2.8mm) | -25 °C | 85 °C | On-Mom | Panel Mount, Front | 10 A | SPDT | 250 V | IP40 | 30.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | N/A | 1 | $ 0.00 | |
Description
General part information
1241.6661 Series
Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
