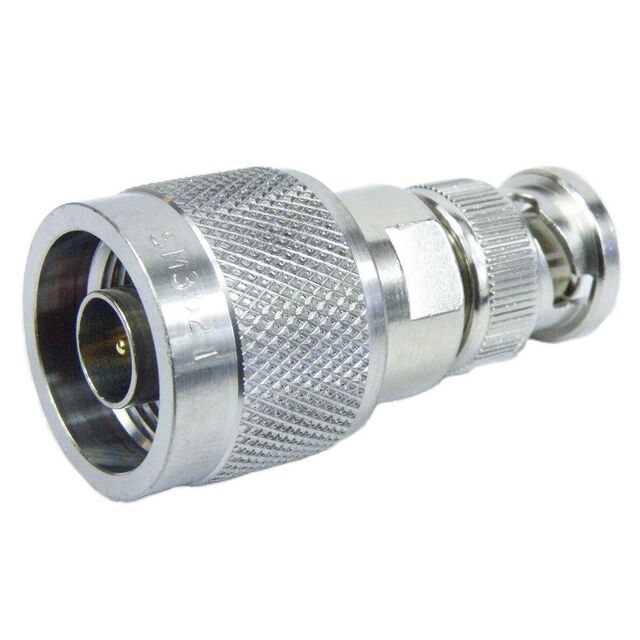

SM3521
ActiveFairview Microwave
COAX ADAPT BNC TO N
SM3521
ActiveFairview Microwave
COAX ADAPT BNC TO N
Description
General part information
SM3521
Adapter Coaxial Connector N Plug, Male Pin To BNC Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3521 |
|---|---|
| Adapter Series | BNC to N |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | BNC Plug |
| Fastening Type | Threaded, Bayonet Lock |
| Frequency - Max | 8 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
