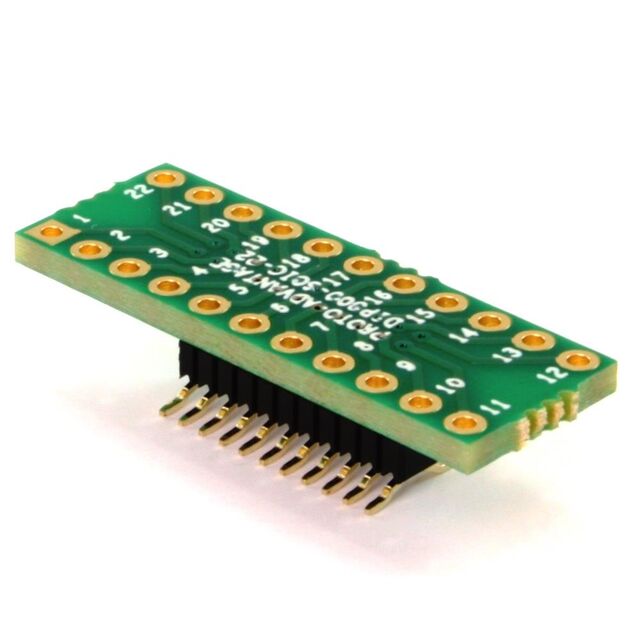

DIP300-SOIC-22N
ActiveChip Quik Inc.
DIP-22 (0.3" WIDTH, 0.1" PITCH)
DIP300-SOIC-22N
ActiveChip Quik Inc.
DIP-22 (0.3" WIDTH, 0.1" PITCH)
Description
General part information
DIP300-SOIC-22N
DIP-22 (0.3" WIDTH, 0.1" PITCH)
Technical Specifications
Parameters and characteristics for this part
| Specification | DIP300-SOIC-22N |
|---|---|
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 22 |
| Package Accepted | SOIC |
| Pitch | 0.05 in |
| Proto Board Type | SMD, DIP |
| Size / Dimension Length | 1.1 in |
| Size / Dimension Width | 0.4 in |
