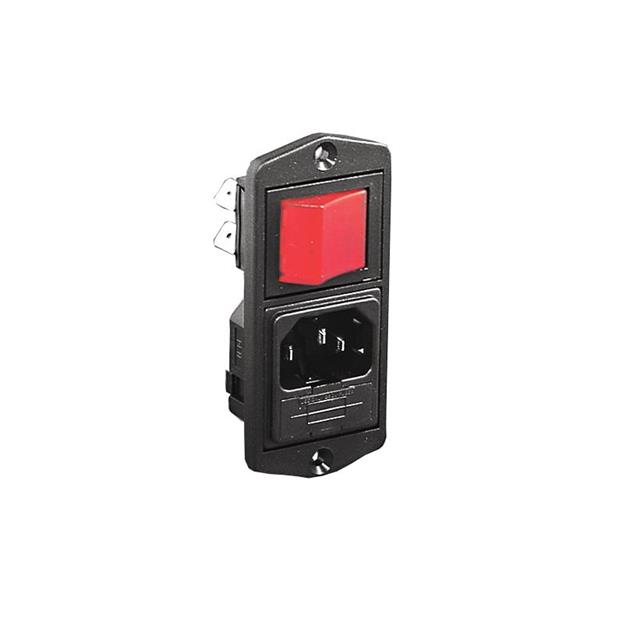

BVA15/Z0000/12

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BVA15/Z0000/12	BVA15/Z Series

Accomodates a Fuse	True	True
Approval Agency	IMQ, UL, ENEC, CSA	IMQ, UL, ENEC, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	33 mm	33 mm
Panel Cutout Dimensions [y]	66.3 mm	53.2 - 66.3 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Material Flammability Rating	Termination	Termination	Termination	Filter Type	Approval Agency	Mounting Type	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Fuse Holder, Drawer	Connector Type	Switch Features	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet
BULGIN LIMITED BVA15/Z0000/01	UL94 V-0	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial	CSA, ENEC, IMQ, UL	Flange, Panel Mount	IEC 320-C14	53.2 mm	33 mm	Fuse Holder, Twin Fused	Receptacle, Male Blades - Module	Switch On-Off	250 VAC	10 A
BULGIN LIMITED BVA15/Z0000/02	UL94 V-0	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial		Flange, Panel Mount	IEC 320-C14	53.2 mm	33 mm	Fuse Holder, Twin Fused	Receptacle, Male Blades - Module	Switch On-Off	250 VAC	10 A
BULGIN LIMITED BVA15/Z0000/12	UL94 V-0	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial	CSA, ENEC, IMQ, UL	Flange, Panel Mount	IEC 320-C14	66.3 mm	33 mm	Fuse Holder, Twin Fused	Receptacle, Male Blades - Module	Switch On-Off	250 VAC	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	180	$ 19.46

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources

No documents available
