000-47025

Active

AMPHENOL RF

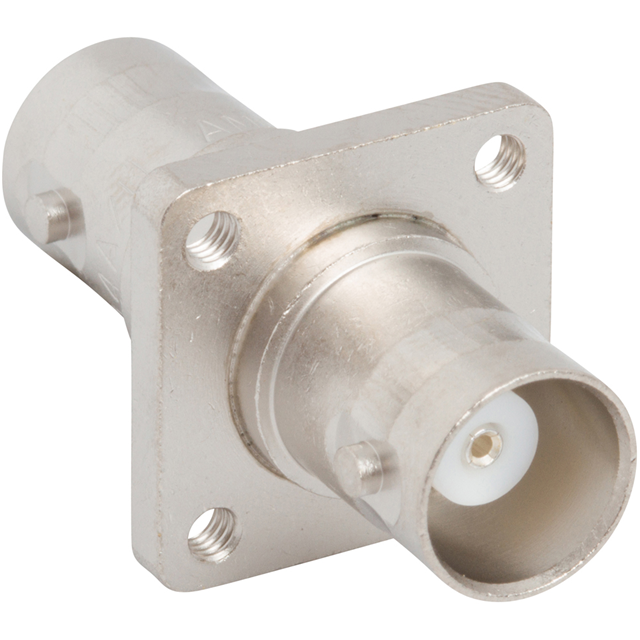

UG-414A/U BNC JACK TO BNC JACK ADAPTER 50 OHM STRAIGHT 4-HOLE FLANGE

Search across all available documentation for this part.

Active

AMPHENOL RF

UG-414A/U BNC JACK TO BNC JACK ADAPTER 50 OHM STRAIGHT 4-HOLE FLANGE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-47025	000-47 Series

Adapter Series	BNC to BNC	BNC to BNC
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	Female to Female	Female to Female
Connector Style	-	BNC
Connector Type	-	Male Pin, Plug
Contact Finish	-	Silver
Contact Material	-	Brass
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Chain
Frequency - Max [Max]	4 GHz	4 GHz
Impedance	50 Ohms	50 - 51 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging, Cap
Style	Straight	Straight

UG-414A/U BNC JACK TO BNC JACK ADAPTER 50 OHM STRAIGHT 4-HOLE FLANGE

Part	Frequency - Max [Max]	Mounting Feature	Convert To (Adapter End)	Center Contact Plating	Fastening Type	Style	Adapter Series	Center Gender	Conversion Type	Impedance	Mating Cycles	Convert From (Adapter End)	Body Material	Dielectric Material	Center Contact Material	Adapter Type	Body Finish	Features	Connector Type	Contact Finish	Contact Material	Connector Style	Mounting Type
AMPHENOL RF 000-47025	4 GHz	Flange	BNC Jack, Female Socket	Silver	Bayonet Lock	Straight	BNC to BNC	Female to Female	Same Series	50 Ohms	500	BNC Jack, Female Socket	Brass	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Jack to Jack	Nickel
AMPHENOL RF 000-4700-51										51 Ohms			Brass				Nickel	Chain	Male Pin, Plug	Silver	Brass	BNC	Cap, Free Hanging

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
