MA-C6U-20-24PVC-F

Active

Pactech

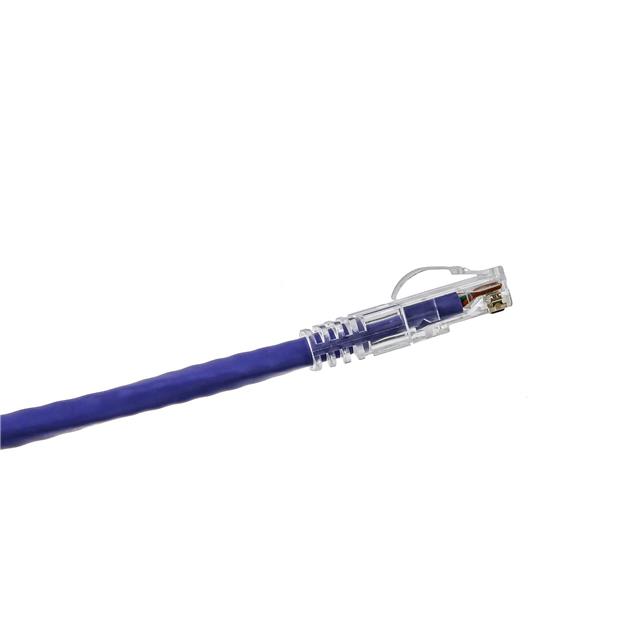

ARCH LATCH RJ45 CAT6 20' PU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MA-C6U-20-24PVC-F

Active

Pactech

ARCH LATCH RJ45 CAT6 20' PU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MA-C6U-20-24PVC-F	MA-C6U Series

Cable Type	Round Cable	Round LSZH Cable, Round Cable
Color	Purple	Purple
Connector Type	Plug to Plug	Plug to Plug
Features	Easy Plug-in and Release, Arch Latch Tangle Free, 24AWG, UTP	UTP Soft PVC, Arch Latch Tangle Free, Easy Plug-in and Release, 28AWG, 24AWG, UTP
Features	6.3 mm	3.8 - 6.3 mm
Length	20 ft	0.5 - 90 ft
Length	6.1 m	1.37 - 1070 mm
Length	-	2 - 100 ft
Length	-	1.22 - 762 m
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Shielding	Unshielded	Unshielded
Style	Cat6	Cat6

MA-C6U Series

ARCH LATCH RJ45 C6 UTP 01' PU

...

Part	Connector Type	Shielding	Length	Length	Cable Type	Color	Number of Positions/Contacts	Style	Features	Features	Mounting Type	Length [x]	Length [x]
Pactech MA-C6U-01-28LSZH-F	Plug to Plug	Unshielded	304.8 mm	1 ft	Round LSZH Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)
Pactech MA-C6U-06.5-28PVC-F	Plug to Plug	Unshielded	1.98 m	6.5 ft	Round Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)
Pactech MA-C6U-05-28PVC-F	Plug to Plug	Unshielded	1.52 m	5 '	Round Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)
Pactech MA-C6U-07.5-24PVC-F	Plug to Plug	Unshielded	2.28 m	90 in	Round Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	24AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP	6.3 mm	Free Hanging (In-Line)
Pactech MA-C6U-100-24PVC-F	Plug to Plug	Unshielded	30.48 m		Round Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	24AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP	6.3 mm	Free Hanging (In-Line)	100 ft
Pactech MA-C6U-40-24PVC-F	Plug to Plug	Unshielded	12.19 m	40 ft	Round Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	24AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP	6.3 mm	Free Hanging (In-Line)
Pactech MA-C6U-04.5-24PVC-F	Plug to Plug	Unshielded	1.37 m		Round Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	24AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP	6.3 mm	Free Hanging (In-Line)	4.5 ft
Pactech MA-C6U-50-24PVC-F	Plug to Plug	Unshielded	15.24 m		Round Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	24AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP	6.3 mm	Free Hanging (In-Line)	50 ft
Pactech MA-C6U-25-28LSZH-F	Plug to Plug	Unshielded			Round LSZH Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	25 ft	7.62 m
Pactech MA-C6U-05-28LSZH-F	Plug to Plug	Unshielded	1.52 m	5 '	Round LSZH Cable	Purple	8p8c (RJ45, Ethernet)	Cat6	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.55
		10	$ 16.05
		20	$ 15.72
		40	$ 15.22

Description

General part information

MA-C6U Series

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 20.00' (6.10m) Unshielded
