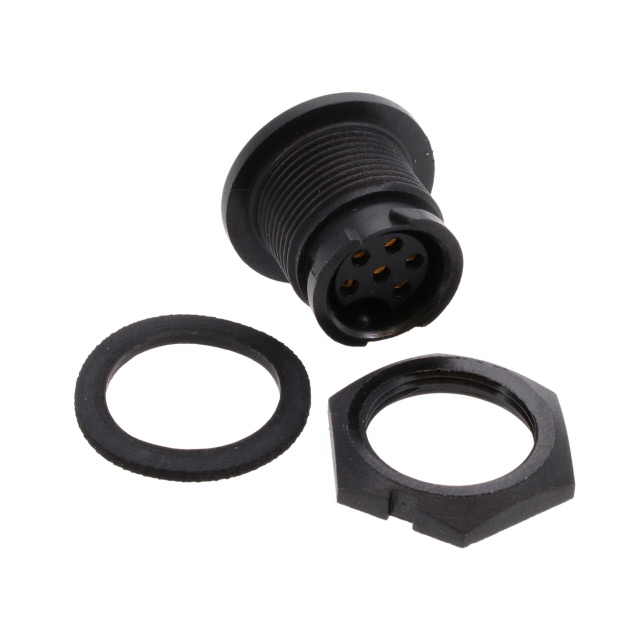

W7282-5SG-P-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7282-5SG-P-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

CONN RCPT FMALE 5POS SOLDER CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Backshell Material, Plating	Color	Fastening Type	Primary Material	Features	Applications	Mounting Feature	Ingress Protection	Orientation	Insert Material	Voltage Rating	Contact Finish - Mating	Shielding	Contact Material
Conxall/Switchcraft W7282-5SG-P-300	85 °C	-40 °C	Varies by Wire Gauge	Receptacle, Female Sockets	Thermoplastic	Black	Bayonet Lock	Plastic	UV Resistant	Automotive, Communication Systems, Instrumentation	Bulkhead - Front Side Nut	IP66, IP67, IP68	Keyed	Thermoplastic	300 VAC	Gold	Unshielded	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.19

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
