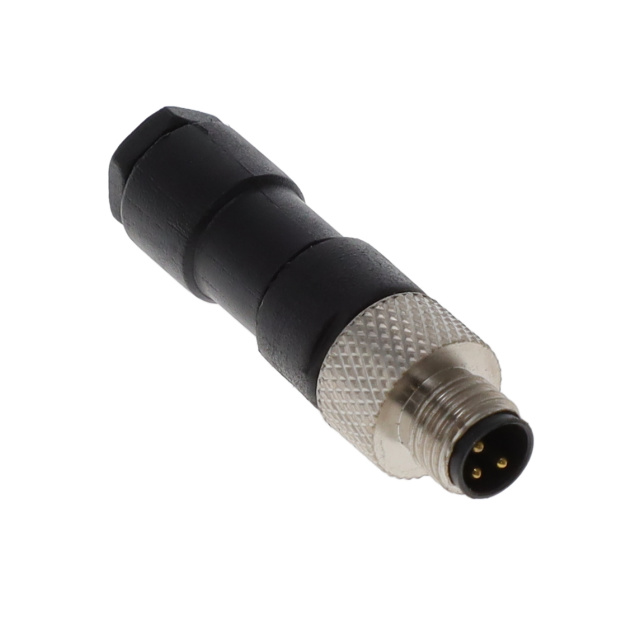

CNM08-S3LP0-BP5
ActiveAltech Corporation
FIELD-WIRED CONN. M8 MALE STR 3-
CNM08-S3LP0-BP5
ActiveAltech Corporation
FIELD-WIRED CONN. M8 MALE STR 3-
Description
General part information
CNM08-S3LP0-BP5
3 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | CNM08-S3LP0-BP5 |
|---|---|
| Backshell Material, Plating | Nylon 6/6, Polyamide (PA66) |
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | A |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-3 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 30 V |
