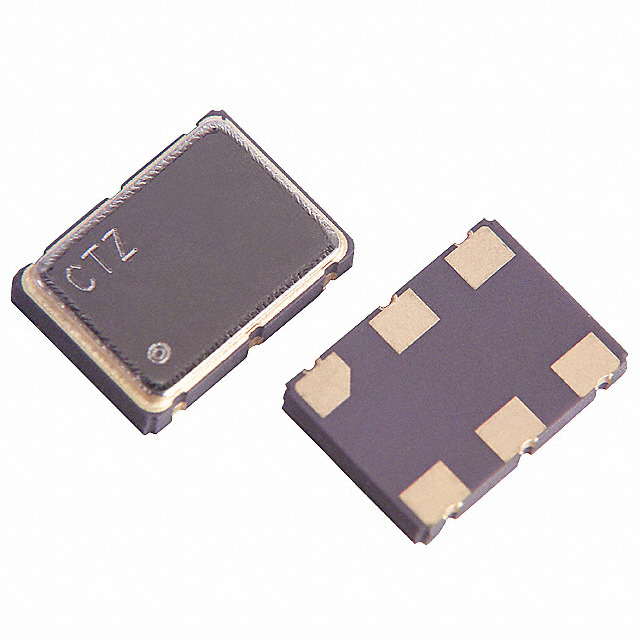

CSX750VCB32.000M-UT
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC VCXO 32.0000MHZ CMOS
CSX750VCB32.000M-UT
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC VCXO 32.0000MHZ CMOS
Description
General part information
CSX750VCB32.000M-UT
32 MHz VCXO CMOS Oscillator 5V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CSX750VCB32.000M-UT |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 20 mA |
| Current - Supply (Max) | 30 mA |
| Frequency | 32 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.063 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | VCXO |
| Voltage - Supply | 5 VDC |
