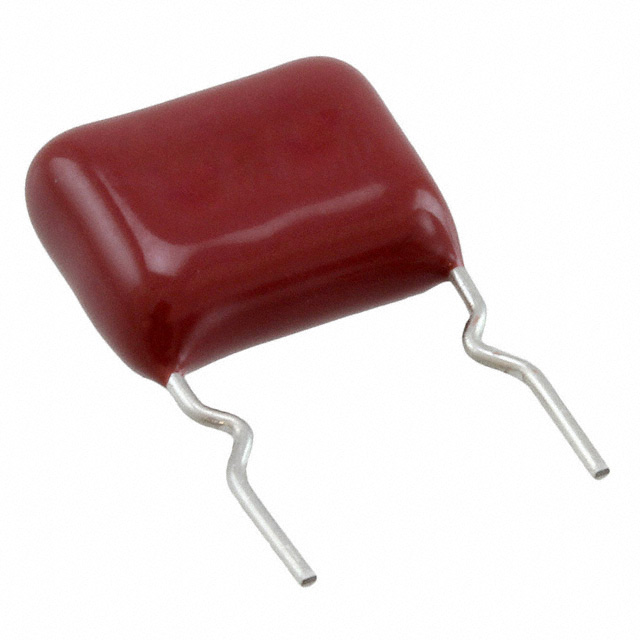

Specification	ECW-FD2J104J4

Applications	RFI Suppression, EMI, High Frequency, High Pulse, Switching, DV/DT
Capacitance	0.1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.559 in
Lead Spacing	0.295 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Size / Dimension Length	0.496 in
Size / Dimension Width	0.228 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	630 V

ECW-FD Series

...

Part	Termination	Lead Spacing	Height - Seated (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Size / Dimension Length	Size / Dimension Width	Mounting Type	Capacitance	Applications	Package / Case	Tolerance	Voltage Rating - DC
Panasonic Electronic Components ECW-FD2W124KB	PC Pins	0.295 in	0.551 in	-40 °C	110 °C	Metallized Polypropylene (PP)	0.496 in	0.181 in	Through Hole	0.12 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	450 V
Panasonic Electronic Components ECW-FD2J105KC	PC Pins	0.886 in	0.531 in	-40 °C	105 °C	Metallized Polypropylene (PP)	0.996 in	0.331 in	Through Hole	1 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	630 V
Panasonic Electronic Components ECW-FD2W274K4	PC Pins	0.295 in	0.591 in	-40 °C	110 °C	Metallized Polypropylene (PP)	0.496 in	0.209 in	Through Hole	0.27 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	450 V
Panasonic Electronic Components ECW-FD2J155K	PC Pins	0.886 in	0.61 in	-40 °C	105 °C	Metallized Polypropylene (PP)	0.996 in	0.406 in	Through Hole	1.5 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	630 V
Panasonic Electronic Components ECW-FD2W475KC	PC Pins	0.886 in	0.646 in	-40 °C	110 °C	Metallized Polypropylene (PP)	0.996 in	0.461 in	Through Hole	4.7 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	450 V
Panasonic Electronic Components ECW-FD2W104K4	PC Pins	0.295 in	0.547 in	-40 °C	110 °C	Metallized Polypropylene (PP)	0.496 in	0.177 in	Through Hole	0.1 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	450 V
Panasonic Electronic Components ECW-FD2J225J	PC Pins	0.886 in	0.697 in	-40 °C	105 °C	Metallized Polypropylene (PP)	0.996 in	0.488 in	Through Hole	2.2 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	5 %	630 V
Panasonic Electronic Components ECW-FD2W474KC	PC Pins	0.394 in	0.441 in	-40 °C	110 °C	Metallized Polypropylene (PP)	0.496 in	0.256 in	Through Hole	0.47 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	450 V
Panasonic Electronic Components ECW-FD2J224JB	PC Pins	0.295 in	0.646 in	-40 °C	105 °C	Metallized Polypropylene (PP)	0.496 in	0.319 in	Through Hole	0.22 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	5 %	630 V
Panasonic Electronic Components ECW-FD2W184KB	PC Pins	0.295 in	0.563 in	-40 °C	110 °C	Metallized Polypropylene (PP)	0.496 in	0.189 in	Through Hole	0.18 µF	DV/DT EMI High Frequency High Pulse RFI Suppression Switching	Radial	10 %	450 V
