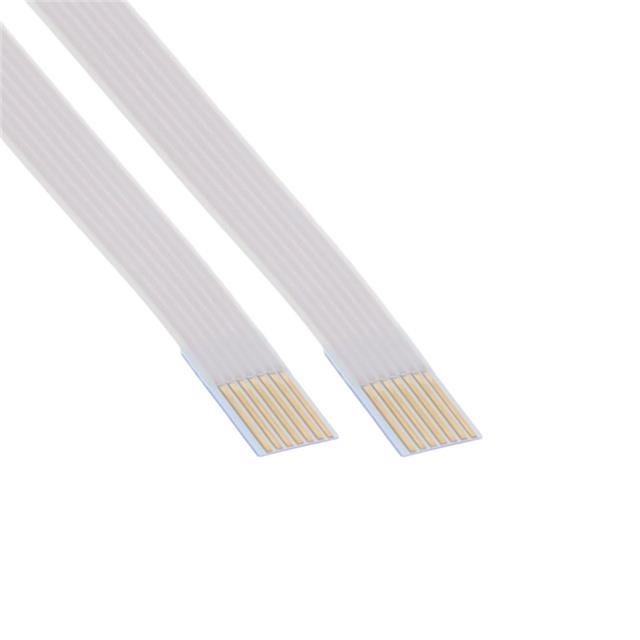

General part information
Position Cable
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
3D models and CAD resources for this part
Technical documentation and resources
| Part | Length | Cable Type | Pitch | Termination Style | Length - Exposed Ends | Number of Conductors |
|---|---|---|---|---|---|---|
 Molex | 4 in | FFC FPC | 0.02 in | Backers on Both Sides Bottom on Other Top on One Side | 0.157 in | 34 |
Molex | 12 in | FFC FPC | 0.02 in | Backers on Both Sides Bottom on Other Top on One Side | 0.157 in | 34 |
Molex | 8 in | FFC FPC | 0.02 in | Backers on Both Sides Bottom on Other Top on One Side | 0.157 in | 36 |
 Molex | 0.5 ft | FFC FPC | 0.02 in | Backers on Both Sides Top on Both Sides | 0.157 in | 10 |
 Molex | 8 in | FFC FPC | 0.02 in | Backers on Both Sides Top on Both Sides | 0.157 in | 40 |
 Molex | 0.5 ft | FFC FPC | 0.02 in | Backers on Both Sides Top on Both Sides | 0.157 in | 18 |
Molex | ||||||
Molex | 1.18 in | FFC FPC | 0.02 in | Backers on Both Sides Bottom on Other Top on One Side | 0.157 in | 43 |
 Molex | 228.6 mm | FFC FPC | 0.02 in | Backers on Both Sides Bottom on Other Top on One Side | 0.157 in | 17 |
 Molex | 4 in | FFC FPC | 0.02 in | Backers on Both Sides Bottom on Other Top on One Side | 0.157 in | 16 |
