1208084
ActivePhoenix Contact
FIBER OPTIC CONNECTORS FOC-ADAPTER:SCD/SCD-OM3
1208084
ActivePhoenix Contact
FIBER OPTIC CONNECTORS FOC-ADAPTER:SCD/SCD-OM3
Description
General part information
1208084

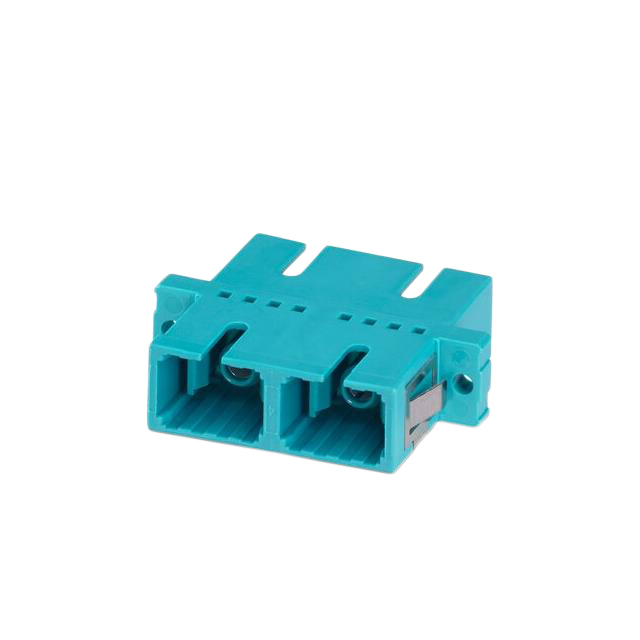

Adapter Fiber Optic Connector SC Receptacle To SC Receptacle Panel Mount, Flange, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 1208084 |
|---|---|
| Color | Turquoise |
| Convert From (Adapter End) | SC Receptacle |
| Convert To (Adapter End) | SC Receptacle |
| Ferrule Material | Copper Alloy |
| Housing Material | Plastic |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mode | Multimode |
| Mounting Type | Snap-In, Flange, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Simplex/Duplex | Duplex |
| Type | Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
