391-060-524-204
ActiveEDAC Inc.

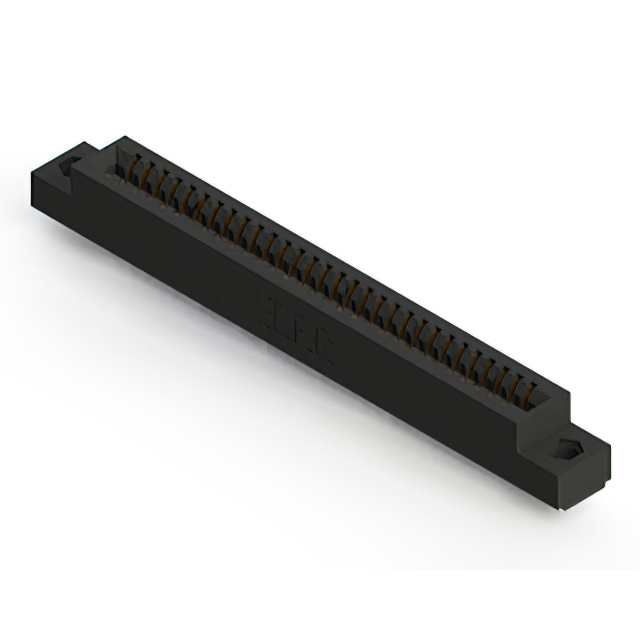

CONN EDGE DUAL FMALE 60POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-060-524-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-060-524-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
391-060 Series
| Part | Card Type | Color | Pitch [x] | Pitch [x] | Contact Finish | Features | Contact Material | Termination Rows | Mounting Type | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Positions/Bay/Row [custom] | Read Out | Material - Insulation | Number of Rows | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Black | 2.54 mm | 0.1 in | Gold | Card Extender | Copper Alloy | 2 | Board Edge Straddle Mount | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 30 | Dual | Polyester Thermoplastic | 2 | 60 | |||
EDAC Inc. | Non Specified - Single Edge | Black | 2.54 mm | 0.1 in | Gold | Copper Alloy | 1 | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 60 | Single | Polyester Thermoplastic | 1 | 60 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Non Specified - Dual Edge | Black | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 30 | Dual | Polyester Thermoplastic | 2 | 60 | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Non Specified - Single Edge | Black | 2.54 mm | 0.1 in | Gold | Copper Alloy | 1 | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 60 | Single | Polyester Thermoplastic | 1 | 60 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |
EDAC Inc. | Non Specified - Dual Edge | Black | 2.54 mm | 0.1 in | Gold | Card Extender | Copper Alloy | 2 | Through Hole | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 30 | Dual | Polyester Thermoplastic | 2 | 60 | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Non Specified - Single Edge | Black | 2.54 mm | 0.1 in | Gold | Copper Alloy | 1 | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 60 | Single | Polyester Thermoplastic | 1 | 60 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Non Specified - Dual Edge | Black | 2.54 mm | 0.1 in | Gold | Card Extender | Copper Alloy | 2 | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 30 | Dual | Polyester Thermoplastic | 2 | 60 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in |
EDAC Inc. | Non Specified - Dual Edge | Black | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 30 | Dual | Polyester Thermoplastic | 2 | 60 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Non Specified - Dual Edge | Black | 2.54 mm | 0.1 in | Gold | Card Extender | Copper Alloy | 2 | Through Hole | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 30 | Dual | Polyester Thermoplastic | 2 | 60 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | Non Specified - Single Edge | Black | 2.54 mm | 0.1 in | Gold | Copper Alloy | 1 | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | 60 | Single | Polyester Thermoplastic | 1 | 60 | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.35 | |
Description
General part information
391-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Documents
Technical documentation and resources
