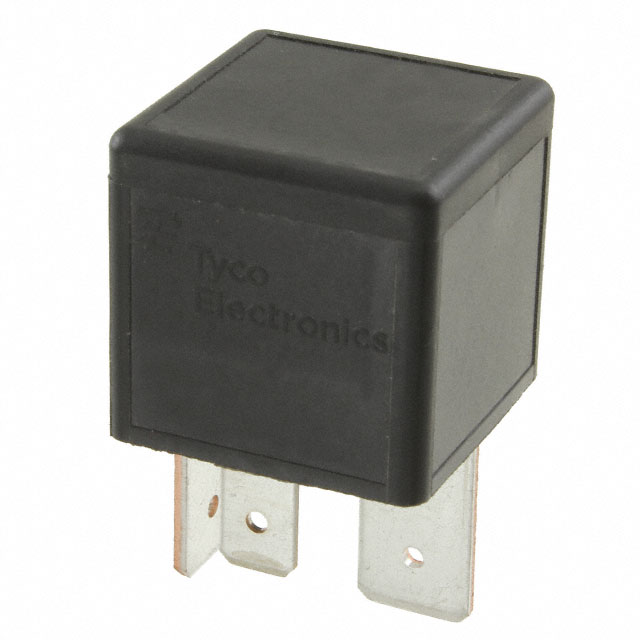

9-1393303-7

Active

TE Connectivity AMP Connectors

RELAY AUTOMOTIVE SPST-NO 70A 24V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY AUTOMOTIVE SPST-NO 70A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST-NO 70A 24V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	9-1393303-7	1393303 Series

Coil Current	-	74.1 - 133.3 mA
Coil Power	1.8 W	1.6 - 1.8 W
Coil Resistance	324 Ohms	90 - 324 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Alloy	Silver Alloy
Contact Rating (Current)	70 A	20 - 70 A
Mounting Type	Socketable	Socketable, Chassis Mount
Must Operate Voltage	14.4 VDC	7.2 - 14.4 VDC
Must Release Voltage	3.2 VDC	1.6 - 3.2 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	2 ms	2 ms
Switching Voltage	24 VDC	14 - 28 VDC
Termination Style	Plug In, Multiple Sizes, Quick Connect	Plug In, Multiple Sizes, Quick Connect, Plug In, Quick Connect - 0.250" (6.3mm)

RELAY AUTOMOTIVE SPST-NO 70A 24V

Part	Mounting Type	Contact Form	Must Release Voltage	Coil Voltage	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Coil Power	Release Time	Coil Type	Switching Voltage	Must Operate Voltage	Termination Style	Contact Rating (Current)	Operate Time	Coil Current
TE Connectivity AMP Connectors 9-1393303-7	Socketable	SPST-NO (1 Form A)	3.2 VDC	24 VDC	324 Ohms	125 °C	-40 °C	Silver Alloy	1.8 W	2 ms	Non Latching	24 VDC	14.4 VDC	Multiple Sizes, Plug In, Quick Connect	70 A	7 ms
TE Connectivity AMP Connectors 4-1393303-7	Chassis Mount	SPST-NO (1 Form A)	1.6 VDC	12 VDC	90 Ohms	125 °C	-40 °C	Silver Alloy	1.6 W	2 ms	Non Latching	14 VDC	7.2 VDC		40 A	7 ms	133.3 mA
TE Connectivity AMP Connectors 5-1393303-0	Chassis Mount	SPST-NO (1 Form A)	3.2 VDC	24 VDC	324 Ohms	125 °C	-40 °C	Silver Alloy	1.8 W	2 ms	Non Latching	28 VDC	14.4 VDC		20 A	7 ms	74.1 mA
TE Connectivity AMP Connectors 3-1393303-4	Chassis Mount	SPST-NO (1 Form A)	1.6 VDC	12 VDC	90 Ohms	125 °C	-40 °C	Silver Alloy	1.6 W	2 ms	Non Latching		7.2 VDC	Plug In, Quick Connect - 0.250" (6.3mm)	60 A	7 ms
