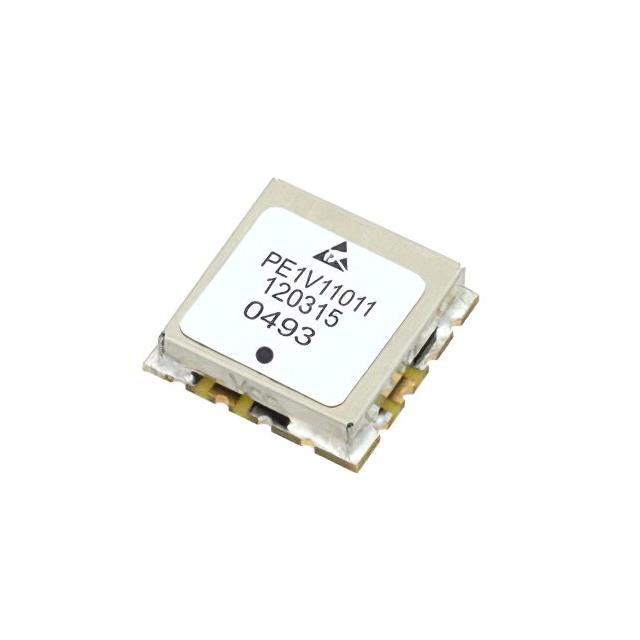

PE1V11011
300MHz Center Frequency 0 V ~ 20 V Voltage Controlled Oscillator 11 ±1 dBm -14 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE1V11011 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -14 dBc |
| Frequency - Center | 300 MHz |
| Frequency Range (Max) | 400 MHz |
| Frequency Range (Min) | 200 MHz |
| Height | 0.126 in |
| Icc Max | 20 mA |
| Maximum Tuning Voltage (VDC) | 20 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 16-SMD, No Lead |
| Phase Noise Typ (dBc/Hz) | -106 dBc/Hz |
| Power (dBm) (Nominal) | 11 dBm |
| Power (dBm) Tolerance | 1 dBm |
| Pushing (MHz/V) | 0.4 MHz/V |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
| Voltage - Supply | 15 VDC |
