1842801

Active

Phoenix Contact

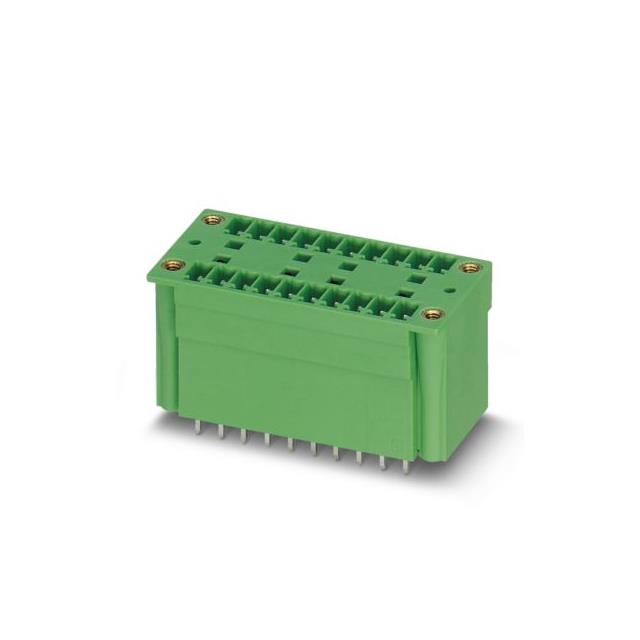

PLUGGABLE TERMINAL BLOCKS 6 POS 3.81MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 6 POS 3.81MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1842801	MCDV Series

Color	Green	Green, Black
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.4 mm	3.4 - 3.5 mm
Contact Tail Length	0.134 in	0.134 - 0.138 in
Current - IEC	8 A	4 - 8 A
Current - UL	8 A	8 A
Features	Mating Flange	Mating Flange
Header Orientation	Vertical	Vertical
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	21.89 mm	17.5 - 21.89 mm
Insulation Height	0.862 in	0.689 - 0.862 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	2	2
Number of Positions	12	12 - 20
Pitch [x]	0.15 in	0.098 - 0.15 in
Pitch [x]	3.81 mm	2.5 - 3.81 mm
Positions Per Level	6	6 - 10
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V	160 - 320 V
Voltage - UL	300 V	300 V

Pluggable Terminal Blocks 13 Pos 3.81mm pitch Through Hole Header

Part	Housing Material	Header Orientation	Material Flammability Rating	Contact Mating Finish	Color	Current - IEC	Type	Current - UL	Number of Positions	Number of Levels	Contact Tail Length	Contact Tail Length	Mounting Type	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Voltage - UL	Positions Per Level	Features	Voltage - IEC	Termination Style
Phoenix Contact 1842801	Polyamide (PA), Nylon	Vertical	UL94 V-0	Tin	Green	8 A	Header, Male Pins, Shrouded (4 Side)	8 A	12	2	3.4 mm	0.134 in	Through Hole	21.89 mm	0.862 in	0.15 in	3.81 mm	300 V	6	Mating Flange	320 V	Solder
Phoenix Contact 1961326	Polyamide (PA), Nylon	Vertical	UL94 V-0	Tin	Black	4 A	Header, Male Pins, Shrouded (4 Side)		20	2	3.5 mm	0.138 in	Through Hole	17.5 mm	0.689 in	0.098 in	2.5 mm		10		160 V	Solder
