CBLSP030A
ActiveEssentra Components
PCB SUPPORT,TOP HL:LOCK ARROW 4.
CBLSP030A
ActiveEssentra Components
PCB SUPPORT,TOP HL:LOCK ARROW 4.
Description
General part information
CBLSP030A

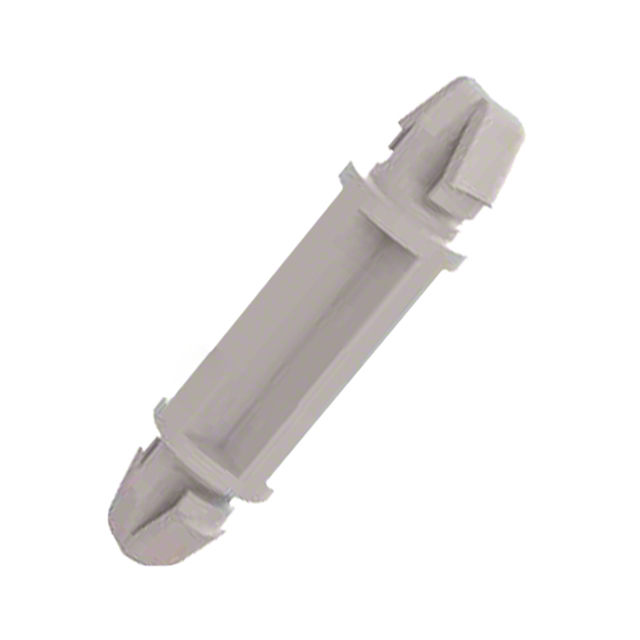

Board Support Snap Lock / Snap Lock Nylon 0.252" (6.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBLSP030A |
|---|---|
| Between Board Height | 0.252 in |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter | 0.156 in |
| Mounting Panel Thickness (Max) | 0.067 in |
| Mounting Panel Thickness (Min) | 0.047 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter | 0.156 in |
| Support Hole Diameter (Alternate) | 5/32" |
| Support Panel Thickness (Max) | 0.067 in |
| Support Panel Thickness (Min) | 0.047 in |
