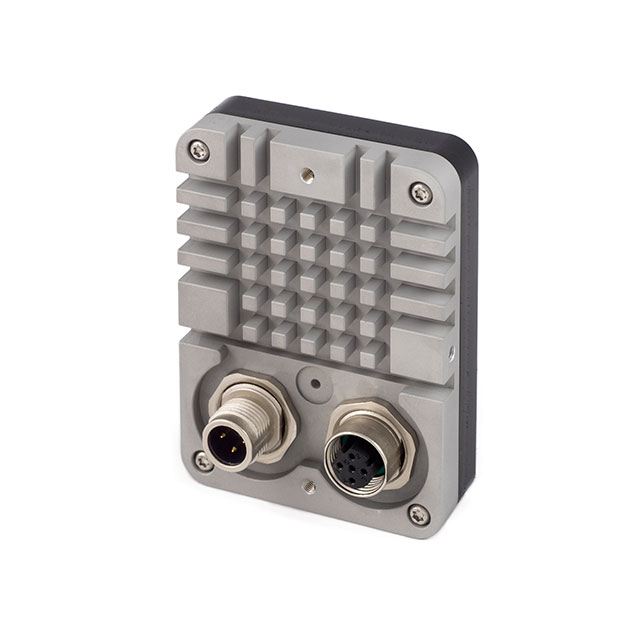

V-MD3_M12-RFB-00A-01

Active

RFbeam Microwave GmbH

RF TXRX MOD RADAR CER PATCH CHAS

Search across all available documentation for this part.

Active

RFbeam Microwave GmbH

RF TXRX MOD RADAR CER PATCH CHAS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V-MD3_M12-RFB-00A-01	V-MD3 Series

Antenna Type	Integrated, Ceramic Patch	Integrated, Ceramic Patch
Contents	-	Power Supply, Cable(s), Accessories, Board(s)
Current - Receiving	300 mA	300 mA
Current - Transmitting	300 mA	300 mA
Data Rate	100 Mbps	100 Mbps
Embedded	-	True
Frequency [Max]	64 GHz	64 GHz
Frequency [Min]	60 GHz	60 GHz
Modulation	FMCW	FMCW
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Package / Case	Module	Module
Power - Output	15 dBm	15 dBm
Protocol	UDP, TCP/IP	UDP, TCP/IP
RF Family/Standard	Radar	Radar
Sensing Range	-	80 m
Sensitivity	-	60 GHz
Sensor Type	-	Radar
Serial Interfaces	100BASE-T, GPO	100BASE-T, GPO
Utilized IC / Part	-	V-MD3
Voltage - Supply [Max]	32 VDC	32 VDC
Voltage - Supply [Min]	8 V	8 V

EVAL BOARD FOR V-MD3

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Range	Embedded	Contents	Utilized IC / Part	Sensitivity	Sensor Type	Antenna Type	Serial Interfaces	Protocol	RF Family/Standard	Package / Case	Modulation	Frequency [Max]	Frequency [Min]	Power - Output	Current - Receiving	Current - Transmitting	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
RFbeam Microwave GmbH V-MD3_M12-EVAL-RFB-00A	32 VDC	8 V	80 m		Accessories, Board(s), Cable(s), Power Supply	V-MD3	60 GHz	Radar
RFbeam Microwave GmbH V-MD3_M12-RFB-00A-01	32 VDC	8 V							Integrated, Ceramic Patch	100BASE-T, GPO	TCP/IP, UDP	Radar	Module	FMCW	64 GHz	60 GHz	15 dBm	300 mA	300 mA	100 Mbps	85 °C	-20 C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1170.73

General part information

Radar TCP/IP, UDP Transceiver Module 60GHz ~ 64GHz Integrated, Ceramic Patch Chassis Mount
