VMK-R062-1.0-U
ActiveIsabellenhuette USA

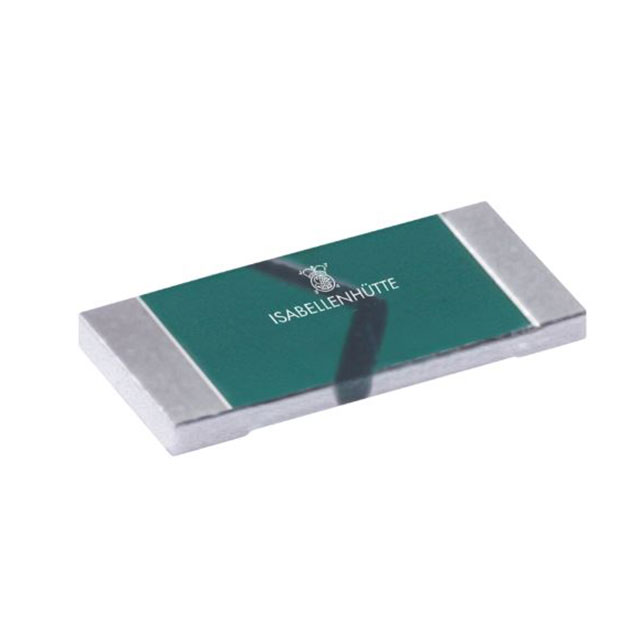

RESISTOR - ISA-PLAN SHUNT, 0.062
VMK-R062-1.0-U
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.062
Description
General part information
VMK-R062-1.0-U
62 mOhms ±1% 1.5W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Technical Specifications
Parameters and characteristics for this part
| Specification | VMK-R062-1.0-U |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.022 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 1.5 W |
| Resistance | 62 mOhms |
| Size / Dimension Length | 0.12 in |
| Size / Dimension Width | 0.06 in |
| Temperature Coefficient | 20 ppm/¯C |
| Tolerance | 1 % |
