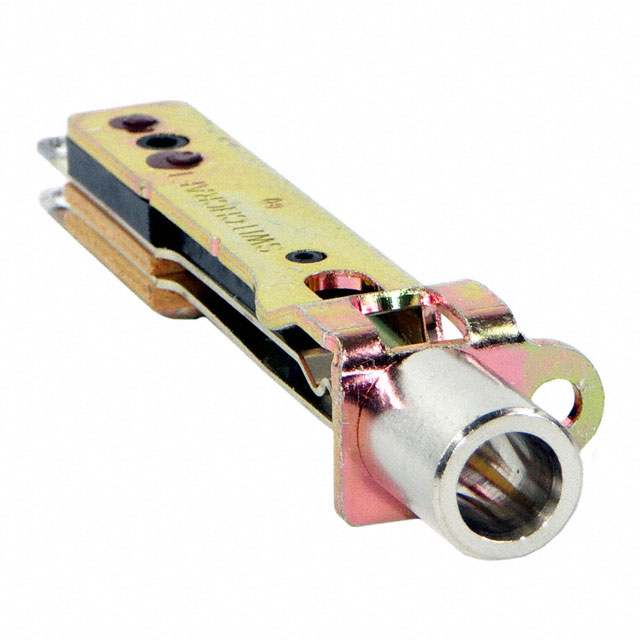

MT332BX

Active

Switchcraft Inc.

CONN 1/4" PHONE JACK F 3 POS SOLDER LUG ST CABLE MOUNT 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN 1/4" PHONE JACK F 3 POS SOLDER LUG ST CABLE MOUNT 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	MT332BX

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Silver
Body Material	Steel
Connector Type	Phone Jack
Contact Material	Palladium (Pd)
Contact Material - Plating [custom]	Gold
Features	Grounding Tab
Gender	Female
Internal Switch(s)	False
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

CONN 1/4" PHONE JACK F 3 POS SOLDER LUG ST CABLE MOUNT 3 TERMINAL 1 PORT

Part	Contact Material - Plating [custom]	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Material	Shielding	Internal Switch(s)	Features	Contact Material	Termination	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Signal Lines	Gender
Switchcraft Inc. MT332BX	Gold	Phone Jack	0.25 in	6.35 mm	Steel	Unshielded		Grounding Tab	Palladium (Pd)	Solder Eyelet(s)	Silver	3	3	Stereo	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
