PF1308 BK005

Active

ALPHA WIRE

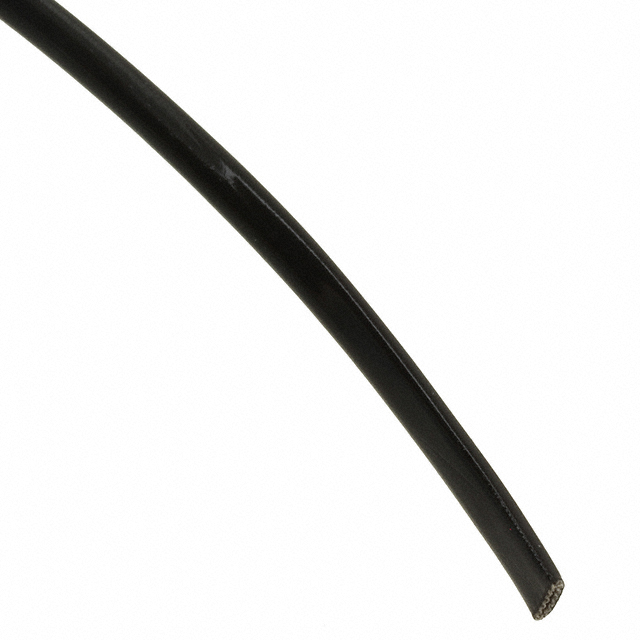

SLEEVING 0.129" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.129" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PF1308 BK005	PF1308 Series

Abrasion Protection	Abrasion Resistant, Fray Resistant	Abrasion Resistant, Fray Resistant
Color	Black	Black
Diameter - Inside [diameter]	3.28 mm	3.28 mm
Diameter - Inside [diameter]	0.129 in	0.129 in
Environment Protection	Corrosion Resistant	Corrosion Resistant
Heat Protection	Heat Resistant	Heat Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Length	-	500 '
Length	-	152.4 m
Liquid Protection	Oil Resistant	Oil Resistant
Material	Fiberglass, PVC Coated	Fiberglass, PVC Coated
Material Flammability Rating	UL VW-1	UL VW-1
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-20 C	-20 C
Type	Sleeving, Insulated	Sleeving, Insulated
Type Attributes	Convoluted - Braided	Convoluted - Braided
Wall Thickness	0.018 in	0.018 in
Wall Thickness	0.46 mm	0.46 mm

SLEEVING 0.129" ID FBRGLASS 100'

Part	Material Flammability Rating	Wall Thickness	Wall Thickness	Type	Liquid Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Type Attributes	Length	Length	Abrasion Protection	Heat Protection	Environment Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Length [x]	Length [x]
ALPHA WIRE PF1308 BK005	UL VW-1	0.018 in	0.46 mm	Sleeving, Insulated	Oil Resistant	Black	-20 C	130 °C	Convoluted - Braided	100 ft	30.48 m	Abrasion Resistant, Fray Resistant	Heat Resistant	Corrosion Resistant	3.28 mm	0.129 in	Fiberglass, PVC Coated
ALPHA WIRE PF1308 BK002	UL VW-1	0.018 in	0.46 mm	Sleeving, Insulated	Oil Resistant	Black	-20 C	130 °C	Convoluted - Braided			Abrasion Resistant, Fray Resistant	Heat Resistant	Corrosion Resistant	3.28 mm	0.129 in	Fiberglass, PVC Coated	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Fiberglass, PVC Coated Convoluted - Braided Sleeving, Insulated 0.129" (3.28mm) 100' (30.48m)
