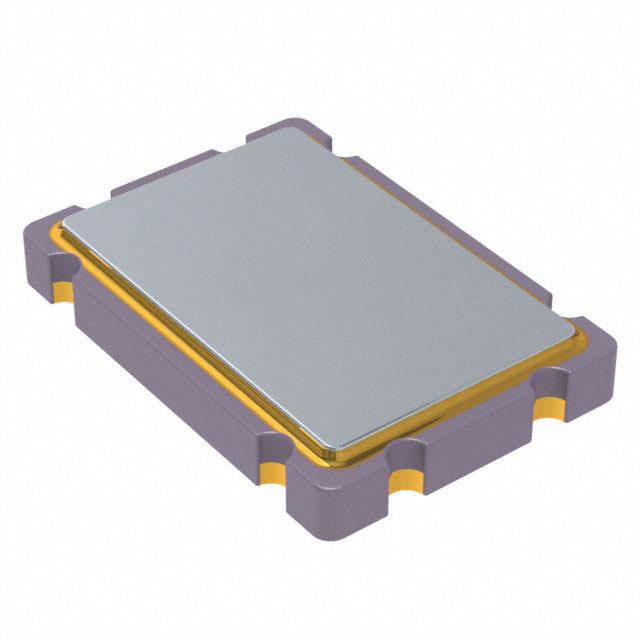

FC7BSCCMF8.0-T1
ActiveFox Electronics
CRYSTAL 8.0000MHZ 20PF SMD
FC7BSCCMF8.0-T1
ActiveFox Electronics
CRYSTAL 8.0000MHZ 20PF SMD
Description
General part information
FC7BSCCMF8.0-T1
8 MHz ±30ppm Crystal 20pF 110 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | FC7BSCCMF8.0-T1 |
|---|---|
| ESR (Equivalent Series Resistance) | 110 Ohm |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.047 in, 0.043 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.205 in |
| Type | MHz Crystal |
