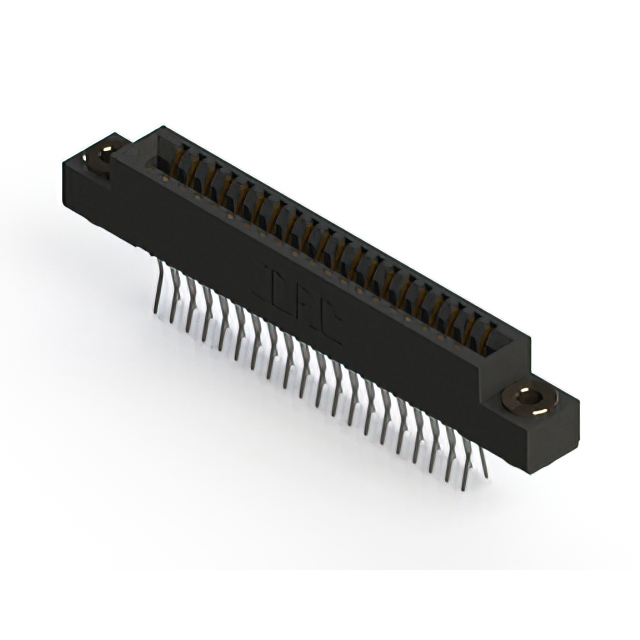

391-040-560-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 40POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

391-040-560-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 40POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-040-560-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.25 m
Contact Finish Thickness	10 in
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Mounting Type	Through Hole
Number of Positions	40
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	2
Operating Temperature [Max] [custom]	105 C
Operating Temperature [Min] [custom]	-40 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

391-040 Series

Part	Number of Positions	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Termination Rows	Mounting Type	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Type	Number of Rows	Gender	Contact Finish	Number of Positions/Bay/Row [custom]	Read Out	Termination	Color	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Features	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
EDAC Inc. 391-040-520-103	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	1	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Semi Bellows	1	Female	Gold	40	Single	Solder	Black	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 391-040-521-201	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	2	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Semi Bellows	2	Female	Gold		Dual	Solder	Black				20	20	20
EDAC Inc. 391-040-524-202	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	2	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Semi Bellows	2	Female	Gold		Dual	Solder	Black	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	20	20	20
EDAC Inc. 391-040-520-204	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	2	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Semi Bellows	2	Female	Gold		Dual	Solder	Black	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	20	20	20
EDAC Inc. 391-040-556-201	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	2	Board Edge Straddle Mount	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Semi Bellows	2	Female	Gold		Dual	Solder	Black				20	20	20	Card Extender
EDAC Inc. 391-040-524-203	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	2	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Semi Bellows	2	Female	Gold		Dual	Solder	Black	0.116 in	Floating Bobbin Flush Mount	2.95 mm	20	20	20
EDAC Inc. 391-040-521-207	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	2	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Semi Bellows	2	Female	Gold		Dual	Solder	Black		Flush Mount M3 Threaded Insert Top Opening		20	20	20
EDAC Inc. 391-040-560-203	40	Copper Alloy	10 in	0.25 m			Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in			Non Specified - Dual Edge	Semi Bellows	2	Female	Gold		Dual	Solder	Black	0.116 in	Floating Bobbin Flush Mount	2.95 mm	20	20	20	Card Extender	105 C	-40 C
EDAC Inc. 391-040-524-101	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	1	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Semi Bellows	1	Female	Gold	40	Single	Solder	Black
EDAC Inc. 391-040-524-108	40	Copper Alloy	10 Áin	0.25 Ám	Polyester Thermoplastic	1	Through Hole	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Semi Bellows	1	Female	Gold	40	Single	Solder	Black		4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.19

Description

General part information

391-040 Series

40 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
