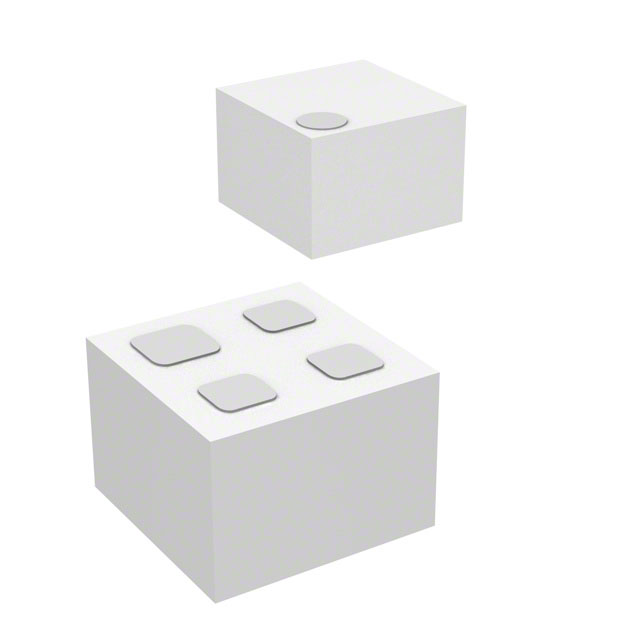

BD1722N5050AHF
ActiveTTM Technologies, Inc.
BALUN 1.7GHZ-2.2GHZ 50/50 0404
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BD1722N5050AHF
ActiveTTM Technologies, Inc.
BALUN 1.7GHZ-2.2GHZ 50/50 0404
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BD1722N5050AHF |
|---|---|
| Frequency Range [Max] | 2.2 GHz |
| Frequency Range [Min] | 1.7 GHz |
| Impedance - Unbalanced/Balanced [custom] | 50 Ohm |
| Impedance - Unbalanced/Balanced [custom] | 50 |
| Insertion Loss (Max) | 1.02 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0404 |
| Phase Difference | 3.42 ° |
| Return Loss (Min) [Min] | 12.5 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.43 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.35 | |||
| Tape & Reel (TR) | 4000 | $ 0.28 | ||
| 8000 | $ 0.24 | |||
| 28000 | $ 0.21 | |||
Description
General part information
BD1722 Series
RF Balun 1.7GHz ~ 2.2GHz 50 / 50Ohm 0404 (1010 Metric)
