230B1C474K
ActiveElectrocube

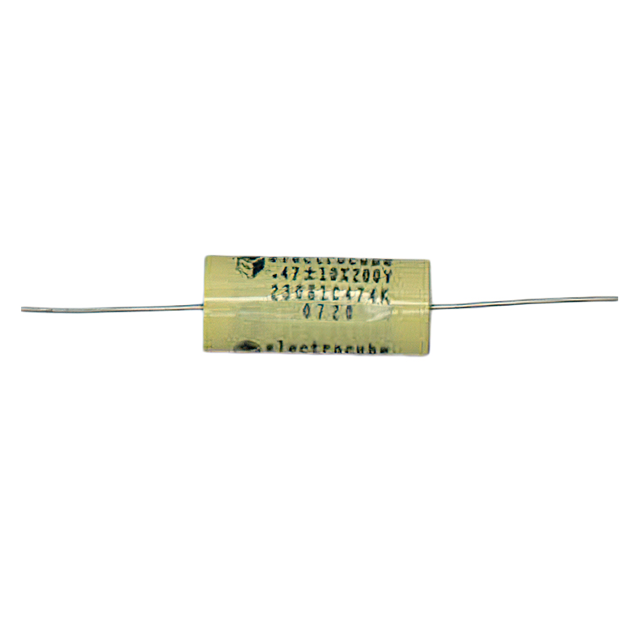

CAP FILM 0.47UF 10% 200VDC AXIAL
230B1C474K
ActiveElectrocube
CAP FILM 0.47UF 10% 200VDC AXIAL
Description
General part information
230B1C474K
0.47 µF Film Capacitor 200V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 230B1C474K |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.47 µF |
| Dielectric Material | Polyester, Metallized |
| Features | Long Life |
| Height - Seated (Max) | 0.29 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Length | 0.78 in |
| Size / Dimension Width | 0.33 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
