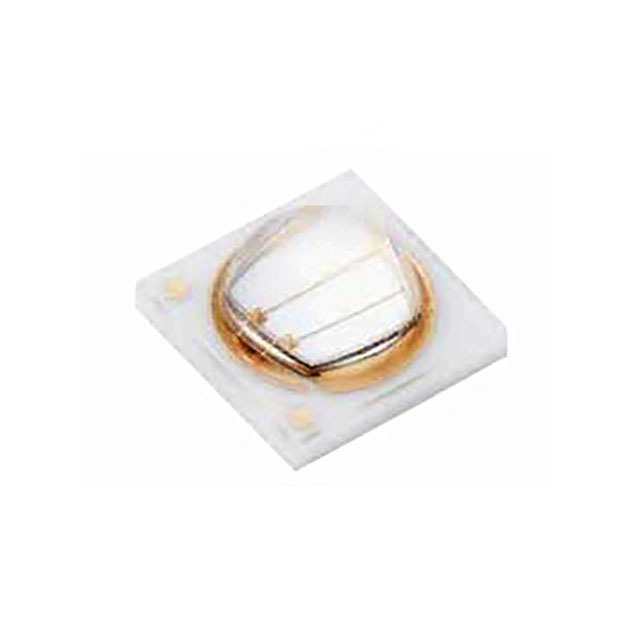

S1CH-3535400003-00000000-00001

Active

Seoul Semiconductor

LED ULTRAVIOLET 3535

Search across all available documentation for this part.

Active

Seoul Semiconductor

LED ULTRAVIOLET 3535

Technical Specifications

Parameters and characteristics for this part

Specification	S1CH-3535400003-00000000-00001

Color	UltraViolet
Current - Max [Max]	500 mA
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	2.08 mm
Height - Seated (Max) [Max] [z]	0.082 in
Luminous Flux @ Current/Temperature	668 mW
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 in
Size / Dimension [y]	3.5 mm
Size / Dimension [y]	0.138 in
Supplier Device Package	3535
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.45 V

LED ULTRAVIOLET 3535

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Test	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Package / Case	Current - Max [Max]
Seoul Semiconductor S1CH-3535400003-00000000-00001	3535	3.45 V	350 mA	668 mW	2.08 mm	0.082 in	120 °	UltraViolet	3.5 mm	3.5 mm	0.138 in	0.138 in	Surface Mount	3535 Metric	1414	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color - Ultraviolet 1414 (3535 Metric)
