9626 0601000

Active

Belden Inc.

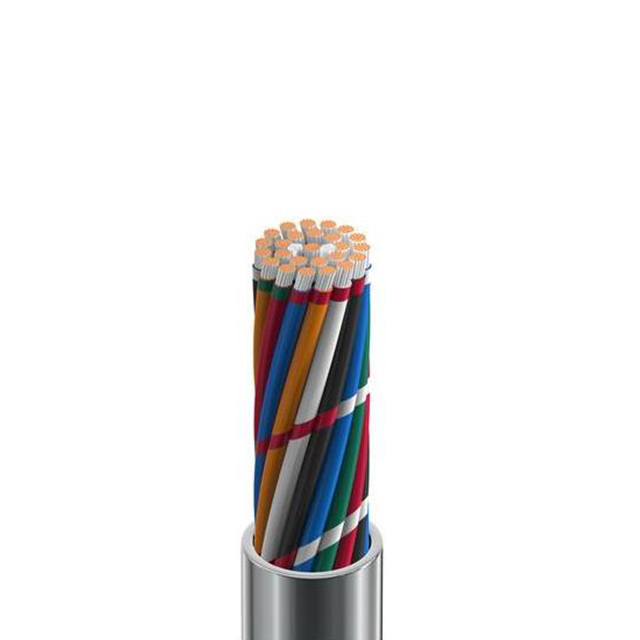

CABLE 25COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 25COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9626 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	15.54 mm
Jacket (Insulation) Diameter [diameter]	0.612 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.06 in
Jacket (Insulation) Thickness	1.524 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	25
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2598
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Usage	Number of Conductors	Ratings	Voltage	Jacket (Insulation) Material	Length	Length	Conductor Insulation	Cable Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
Belden Inc. 9626 0601000	-20 C	60 °C	15.54 mm	0.612 in	18 AWG	0.06 in	1.524 mm	Chrome	Audio Control Instrumentation	25	UL Style 2598	300 V	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	19	30 AWG
Belden Inc. 9626 060500	-20 C	60 °C	15.54 mm	0.612 in	18 AWG	0.06 in	1.524 mm	Chrome	Audio Control Instrumentation	25	UL Style 2598	300 V	Poly-Vinyl Chloride (PVC)			Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	19	30 AWG	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 20.59

General part information

25 Conductor Multi-Conductor Cable Chrome 18 AWG 1000.0' (304.8m)
