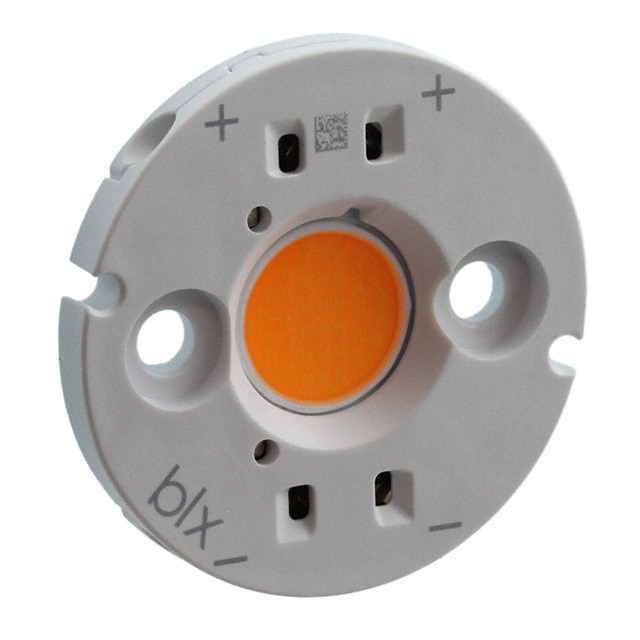

BXRC-20B1001-D-73-SE
ActiveBRIDGELUX
LED COB VERO SE 10 WHT RND 2000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXRC-20B1001-D-73-SE
ActiveBRIDGELUX
LED COB VERO SE 10 WHT RND 2000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXRC-20B1001-D-73-SE | BXRC-20 Series |
|---|---|---|
| CCT (K) | 2000 K | 2000 K |
| Color | White, Warm | White, Warm |
| Configuration | Round | Round, Starboard |
| CRI (Color Rendering Index) | 65 | 65 |
| Current - Max [Max] | 700 mA | 2.1 - 700 A |
| Current - Test | 350 mA | 1.05 - 350 A |
| Features | - | With Connector |
| Height [z] | 3.6 mm | 1.9 - 3.6 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 9.9 mm | 9.9 - 29.2 mm |
| Lumens/Watt @ Current - Test | 130 lm/W | 121 - 149 lm/W |
| Luminous Flux @ Current/Temperature | 1155 lm | 1155 - 17724 lm |
| Size / Dimension [diameter] | 30.8 mm | 20 - 49.2 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 25.3 V | 25.3 - 69.4 V |
BXRC-20 Series
LED COB VERO 18 WM WHT RND 2000K
| Part | Configuration | Lumens/Watt @ Current - Test | Type | Height [z] | Viewing Angle | Light Emitting Surface (LES) [diameter] | Luminous Flux @ Current/Temperature | Voltage - Forward (Vf) (Typ) | Features | Current - Max [Max] | Temperature - Test | Color | CCT (K) | CRI (Color Rendering Index) | Lens Type | Size / Dimension [diameter] | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXRC-20B4001-C-73 | Round | 121 lm/W | Chip On Board (COB) | 1.9 mm | 120 ° | 18.4 mm | 5351 lm | 34.1 V | With Connector | 2.34 A | 85 °C | Warm, White | 2000 K | 65 | Flat | 36.2 mm | |
BRIDGELUX BXRC-20B4001-D-73-SE | Round | 132 lm/W | Chip On Board (COB) | 3.6 mm | 120 ° | 18.4 mm | 3929 lm | 28.3 V | 2.1 A | 85 °C | Warm, White | 2000 K | 65 | Flat | 36.2 mm | 1.05 A | |
BRIDGELUX BXRC-20B10K1-C-73 | Round | 149 lm/W | Chip On Board (COB) | 1.9 mm | 120 ° | 29.2 mm | 17724 lm | 69.4 V | 3.42 A | Warm, White | 2000 K | 65 | Flat | 49.2 mm | 1.71 A | ||
BRIDGELUX BXRC-20B1001-D-73 | Starboard | 145 lm/W | Chip On Board (COB) | 1.9 mm | 120 ° | 9.9 mm | 1322 lm | 26 V | With Connector | 700 mA | Warm, White | 2000 K | 65 | Flat | 20 mm | 350 mA | |
BRIDGELUX BXRC-20B4001-D-73 | Round | 121 lm/W | Chip On Board (COB) | 1.9 mm | 120 ° | 18.4 mm | 3981 lm | 28.1 V | With Connector | 2.1 A | 85 °C | Warm, White | 2000 K | 65 | Flat | 36.2 mm | 1.05 A |
BRIDGELUX BXRC-20B10K1-C-73-SE | Round | 149 lm/W | Chip On Board (COB) | 3.6 mm | 120 ° | 29.2 mm | 17682 lm | 69.4 V | 3.42 A | Warm, White | 2000 K | 65 | Flat | 49.2 mm | 1.71 A | ||
BRIDGELUX BXRC-20B1001-B-73-SE | Round | 131 lm/W | Chip On Board (COB) | 3.6 mm | 120 ° | 9.9 mm | 1192 lm | 33.8 V | 540 mA | 85 °C | Warm, White | 2000 K | 65 | Flat | 30.8 mm | 270 mA | |
BRIDGELUX BXRC-20B1001-D-73-SE | Round | 130 lm/W | Chip On Board (COB) | 3.6 mm | 120 ° | 9.9 mm | 1155 lm | 25.3 V | 700 mA | 85 °C | Warm, White | 2000 K | 65 | Flat | 30.8 mm | 350 mA | |
BRIDGELUX BXRC-20B4001-C-73-SE | Round | 132 lm/W | Chip On Board (COB) | 3.6 mm | 120 ° | 18.4 mm | 34.1 V | 2.34 A | 85 °C | Warm, White | 2000 K | 65 | Flat | 36.2 mm | |||
BRIDGELUX BXRC-20B10K1-D-73-SE | Round | 149 lm/W | Chip On Board (COB) | 3.6 mm | 120 ° | 29.2 mm | 11765 lm | 37.6 V | 4.2 A | Warm, White | 2000 K | 65 | Flat | 49.2 mm | 2.1 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 2.62 | |
Description
General part information
BXRC-20 Series
LED Lighting COBs Engines Modules Chip On Board (COB) Vero® SE 10 Array White, Warm Round
Documents
Technical documentation and resources
