PHG.00.304.CLLD35

Active

LEMO

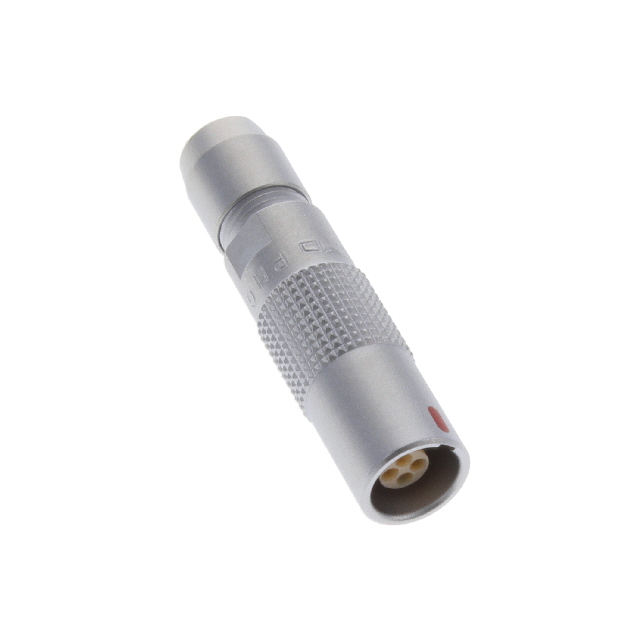

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHG.00.304.CLLD35

Active

LEMO

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.96
		10	$ 40.24
		25	$ 36.53
		50	$ 34.02
		100	$ 31.75
		250	$ 29.08

Description

General part information

PHG.00 Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHG.00.304.CLLD35	PHG.00 Series

Accessory Type	-	Midpiece
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	1.4 - 2.2 mm
Cable Opening	-	0.055 - 0.087 in
Cable Opening	-	0.087 in
Cable Opening	-	2.7 mm
Cable Opening	-	2.2 mm
Cable Opening	-	0.106 in
Cable Opening [diameter]	3.5 mm	3.5 mm
Cable Opening [diameter]	0.138 in, 0.106 in	0.106 - 0.138 in
Cable Opening [diameter]	2.7 mm	2.7 - 3 mm
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	2 A	1.7 - 5 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
For Use With/Related Products	-	00 Series Receptacle
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	2 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 305
Shielding	Shielded	Shielded
Termination	-	Crimp

PHG.00 Series

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Current Rating (Amps)	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Shell Size - Insert	Color	Insert Material	Shell Material	Contact Material	Mounting Type	Shell Finish	Backshell Material, Plating	Shielding	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Number of Positions
LEMO PHG.00.303.CLLD22	3 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets	1.4 mm, 2.2 mm	0.055 in, 0.087 in	G	59 Áin	1.5 Ám	Metal	303	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded
LEMO PHG.00.303.CYMD35	3 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets			G	59 Áin	1.5 Ám	Metal	303	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded	Crimp	3.5 mm	0.106 in, 0.138 in	2.7 mm
LEMO PHG.00.303.CLLD27	3 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets			G	59 Áin	1.5 Ám	Metal	303	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded					0.087 in	2.7 mm	2.2 mm	0.106 in
LEMO PHG.00.304.CLLD27	2 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets			G	59 Áin	1.5 Ám	Metal	304	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded					0.087 in	2.7 mm	2.2 mm	0.106 in	4
LEMO PHG.00.304.CLLD35Z	2 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets			G	59 Áin	1.5 Ám	Metal	304	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded		3.5 mm	0.106 in, 0.138 in	2.7 mm					4
LEMO PHG.00.304.CLLD30	2 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets			G	59 Áin	1.5 Ám	Metal	304	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded			0.118 in	3 mm					4
LEMO PHG.00.304.CLLD17Z	2 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets	1.7 mm	0.067 in	G	59 Áin	1.5 Ám	Metal	304	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded									4
LEMO PHG.00.304.CLLD22	2 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets	1.4 mm, 2.2 mm	0.055 in, 0.087 in	G	59 Áin	1.5 Ám	Metal	304	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded									4
LEMO PHG.00.304.CLLD30Z	2 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets			G	59 Áin	1.5 Ám	Metal	304	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded			0.118 in	3 mm					4
LEMO PHG.00.302.CLLD22	5 A	Gold	UL94 V-0	Push-Pull	IP50	-55 °C	250 °C	Backshell	Receptacle, Female Sockets	1.4 mm, 2.2 mm	0.055 in, 0.087 in	G	59 Áin	1.5 Ám	Metal	302	Silver	Polyetheretherketone (PEEK)	Brass	Bronze	Free Hanging (In-Line)	Chrome	Brass, Chrome	Shielded									2
