CR75-4R7MC
ObsoleteSumida America Components Inc.
FIXED IND 4.7UH 3.1A 30 MOHM SMD
CR75-4R7MC
ObsoleteSumida America Components Inc.
FIXED IND 4.7UH 3.1A 30 MOHM SMD
Description
General part information
CR75-4R7MC

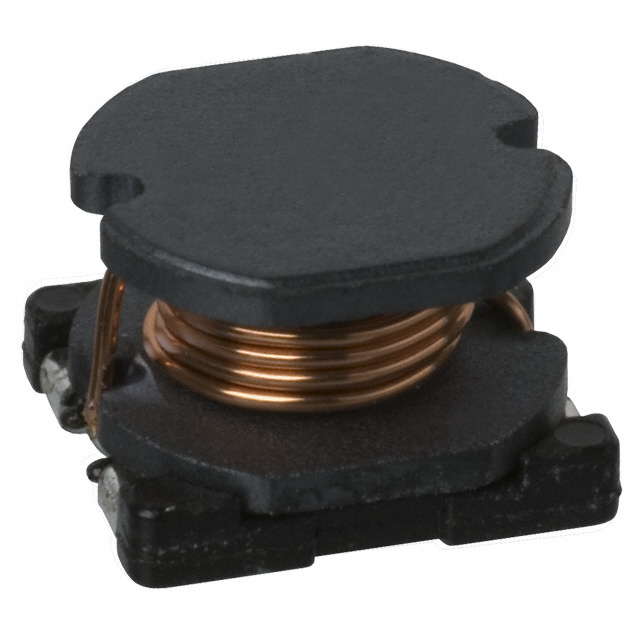

4.7 µH Unshielded Drum Core, Wirewound Inductor 3.1 A 30mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CR75-4R7MC |
|---|---|
| Current Rating | 3.1 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Frequency - Self Resonant | 20.4 MHz |
| Height - Seated (Max) | 0.217 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.307 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
