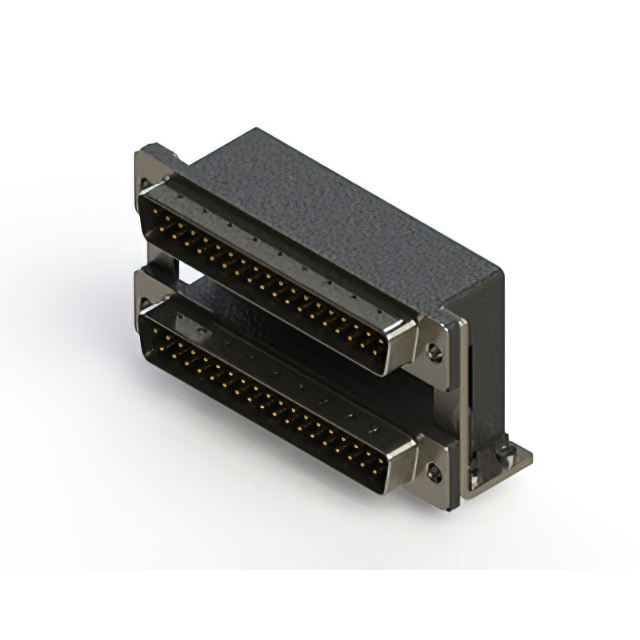

661-037-664-050
ActiveEDAC Inc.
661 SERIES RIGHT ANGLE DUAL D-SU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 661-037-664-050 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
661-037 Series
| Part | Current Rating (Amps) | Contact Material | Flange Feature | Features | Color | Dielectric Material | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Shell Size, Connector Layout | Shell Material, Finish | Number of Rows | Termination | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Backset Spacing | Backset Spacing | Connector Style | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3 A | Brass | Housing/Shell (Unthreaded) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.76 Ám | 30 Áin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (M3) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.76 Ám | 30 Áin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (M3) | Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.76 Ám | 30 Áin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (4-40) | Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.38 µm | 15 µin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (Unthreaded) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.38 µm | 15 µin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (Unthreaded) | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.76 Ám | 30 Áin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (4-40) | Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.38 µm | 15 µin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Female Screwlock (4-40) Mating Side | Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.38 µm | 15 µin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (Unthreaded) | Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.38 µm | 15 µin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
EDAC Inc. | 3 A | Brass | Housing/Shell (Unthreaded) | Grounding Indents Mounting Brackets Shielded | Black | Polyester Thermoplastic | 0.76 Ám | 30 Áin | Male Pins Plug | Gold | 4 | Nickel Plated Steel | 2 | Solder | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Signal | 8.08 mm | 0.318 " | D-Sub - Stacked | 37 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 23.26 | |
Description
General part information
661-037 Series
37, 37 Position D-Sub - Stacked Plug, Male Pins Connector
