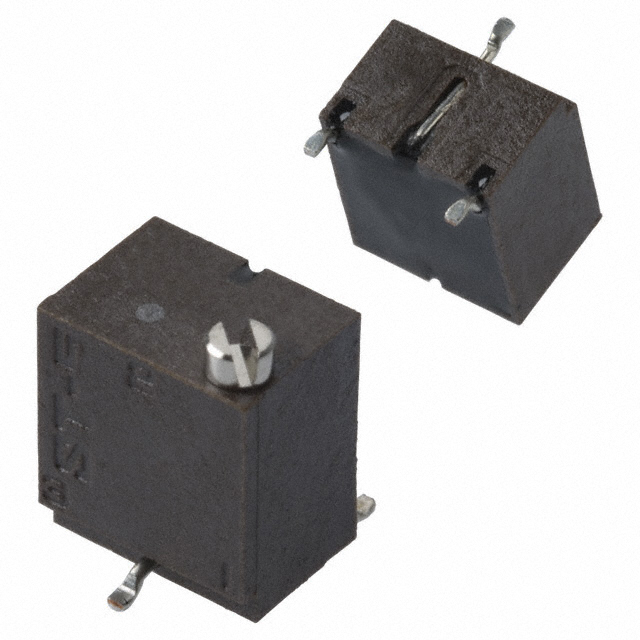

ST-5ETW105
ActiveNidec Components Corporation
TRIMMER 1M OHM 0.25W GW TOP ADJ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-5ETW105 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 14 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 1 MOhms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 2.50 | |
Description
General part information
ST-5ETW105
1 MOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 14.0 Turn Top Adjustment
