SM150808-8
ActiveDB Unlimited

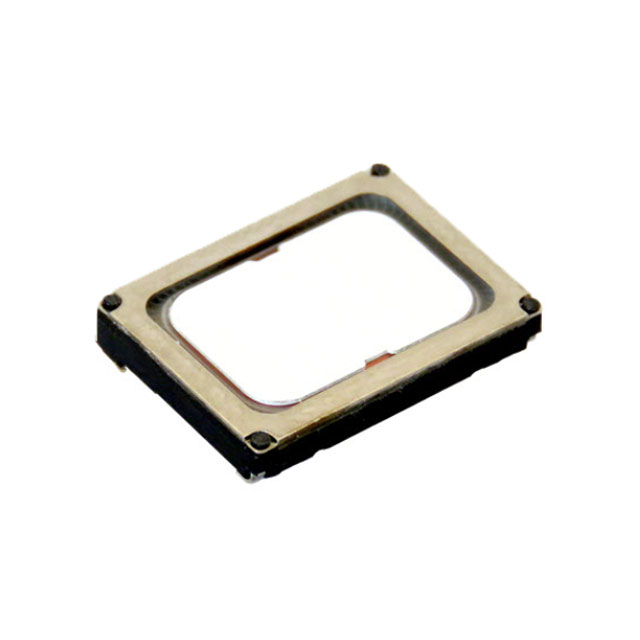

SPEAKER 8OHM 1W TOP PORT 93DB
SM150808-8
ActiveDB Unlimited
SPEAKER 8OHM 1W TOP PORT 93DB
Description
General part information
SM150808-8
8 Ohms General Purpose Speaker 1 W 850 Hz ~ 10 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | SM150808-8 |
|---|---|
| Efficiency - dBA | 93 dBA |
| Efficiency - Testing (Length) | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 850 Hz |
| Height - Seated (Max) | 0.098 in |
| Impedance | 8 Ohm |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Power - Max | 1.5 W |
| Power - Rated | 1 VA |
| Shape | Rectangular |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.433 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
