896-098-521-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 98POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-098-521-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 98POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 88.75

Description

General part information

896-098 Series

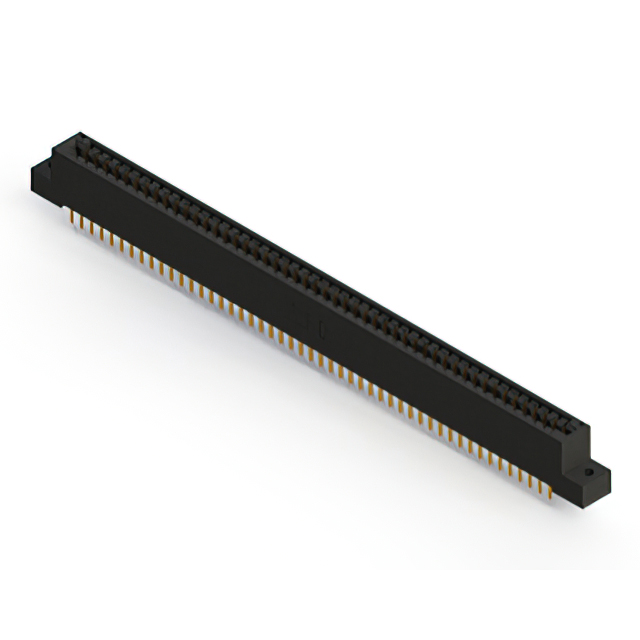

98 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-098-521-202	896-098 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded	Side Mount Opening, Unthreaded, Flush Mount, Top Opening, Top Mount Opening, Floating Bobbin, 4-40, Threaded Insert, Side Opening, M3
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Flange Feature [diameter]	3.25 mm	2.95 - 3.96 mm
Flange Feature [diameter]	0.128 "	0.116 - 0.156 in
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole	Through Hole
Number of Positions	98	98
Number of Positions/Bay/Row [custom]	49	49
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder Eyelet(s), Solder
Termination Rows	2	2

896-098 Series

CONN EDGE DUAL FMALE 98POS 0.125

Part	Number of Rows	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Mounting Type	Number of Positions	Contact Finish	Termination Rows	Color	Flange Feature	Flange Feature	Flange Feature	Gender	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Read Out	Contact Material	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 896-098-500-812	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	Side Mount Opening, Unthreaded	3.25 mm	0.128 in	Female	Solder Eyelet(s)	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49
EDAC Inc. 896-098-500-204	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	Flush Mount, Top Opening, Unthreaded			Female	Solder Eyelet(s)	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49	3.96 mm	0.156 in
EDAC Inc. 896-098-521-803	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	Floating Bobbin, Top Mount Opening			Female	Solder	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49	2.95 mm	0.116 in
EDAC Inc. 896-098-500-202	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	Flush Mount, Top Opening, Unthreaded			Female	Solder Eyelet(s)	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49	3.25 mm	0.128 "
EDAC Inc. 896-098-520-808	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	4-40, Threaded Insert, Top Mount Opening			Female	Solder	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49
EDAC Inc. 896-098-522-203	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	Floating Bobbin, Flush Mount			Female	Solder	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49	2.95 mm	0.116 in
EDAC Inc. 896-098-500-203	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	Floating Bobbin, Flush Mount			Female	Solder Eyelet(s)	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49	2.95 mm	0.116 in
EDAC Inc. 896-098-500-201	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black				Female	Solder Eyelet(s)	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49
EDAC Inc. 896-098-521-808	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	4-40, Threaded Insert, Top Mount Opening			Female	Solder	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49
EDAC Inc. 896-098-520-212	2	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	98	Gold	2	Black	Flush Mount, Side Opening, Unthreaded			Female	Solder	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Cantilever	Dual	Copper Alloy	49	3.25 mm	0.128 "
