2STF2550
ActiveSTMicroelectronics

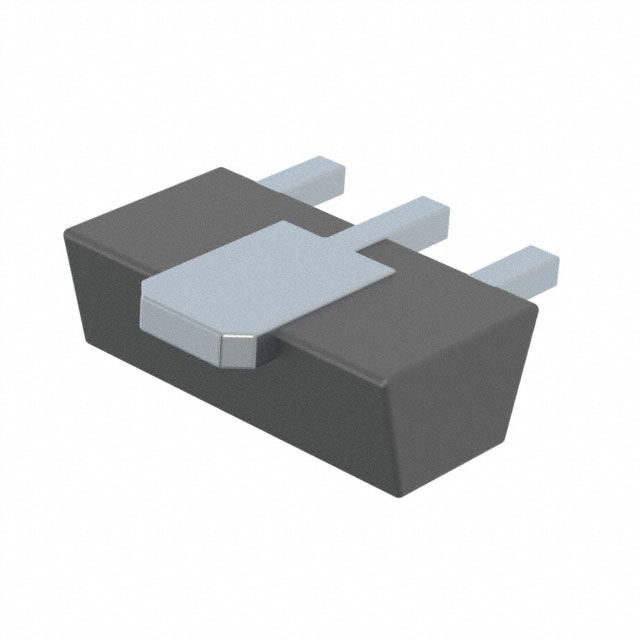

BIPOLAR (BJT) SINGLE TRANSISTOR, PNP, -50 V, 1.4 W, -5 A, 70 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
2STF2550
ActiveSTMicroelectronics
BIPOLAR (BJT) SINGLE TRANSISTOR, PNP, -50 V, 1.4 W, -5 A, 70 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2STF2550 | 2STF2550 Series |
|---|---|---|
| - | - | |
| Current - Collector (Ic) (Max) | 5 A | 5 A |
| Current - Collector Cutoff (Max) [Max] | 100 nA | 100 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 110 hFE | 110 hFE |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | 150 °C | 150 °C |
| Package / Case | TO-243AA | TO-243AA |
| Power - Max [Max] | 1.4 W | 1.4 W |
| Supplier Device Package | SOT-89-3 | SOT-89-3 |
| Transistor Type | PNP | PNP |
| Vce Saturation (Max) @ Ib, Ic | 550 mV | 550 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.43 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 2500 | $ 0.17 | ||
| 5000 | $ 0.16 | |||
| 12500 | $ 0.15 | |||
| 25000 | $ 0.15 | |||
| 62500 | $ 0.14 | |||
| Newark | Each | 1 | $ 0.81 | |
| 10 | $ 0.53 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
| 25000 | $ 0.20 | |||
2STF2550 Series
Low voltage high performance PNP power transistor
| Part | Supplier Device Package | Power - Max [Max] | Current - Collector Cutoff (Max) [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Vce Saturation (Max) @ Ib, Ic | Mounting Type | Current - Collector (Ic) (Max) | Operating Temperature | Transistor Type | Package / Case | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 2STF2550 | SOT-89-3 | 1.4 W | 100 nA | 50 V | 550 mV | Surface Mount | 5 A | 150 °C | PNP | TO-243AA | 110 hFE |
STMicroelectronics 2STF2550 | |||||||||||
STMicroelectronics 2STF2550 | |||||||||||
STMicroelectronics 2STF2550 |
Description
General part information
2STF2550 Series
The 2STF2550 and 2STN2550 are PNP transistors manufactured using new "PB-HCD" (Power bipolar high current density) technology.
The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage.
