PA4309.563NLT
ActivePulse Electronics
FIXED IND 56UH 4.6A 236 MOHM SMD
PA4309.563NLT
ActivePulse Electronics
FIXED IND 56UH 4.6A 236 MOHM SMD
Description
General part information
PA4309.563NLT

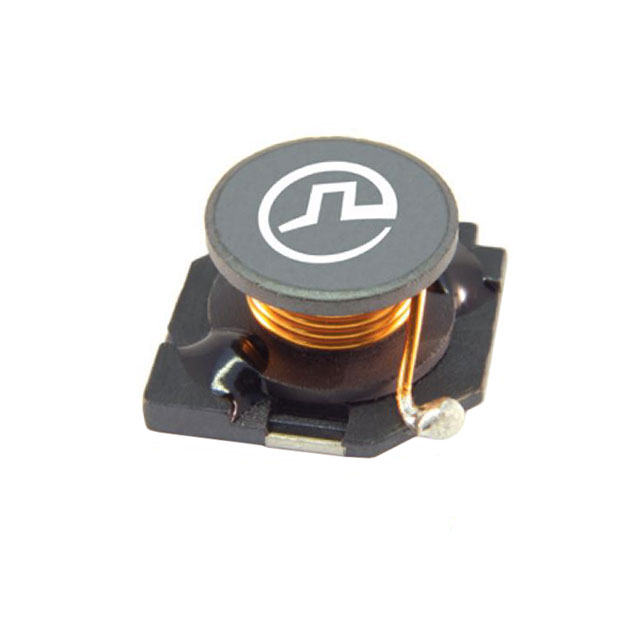

56 µH Unshielded Wirewound Inductor 4.6 A 236mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4309.563NLT |
|---|---|
| Current Rating | 4.6 A |
| DC Resistance (DCR) (Max) | 236 mOhm |
| Height - Seated (Max) | 0.276 in |
| Inductance | 56 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.504 in |
| Size / Dimension Width | 0.504 in |
| Tolerance | 20 % |
| Type | Wirewound |
