2801513
ActivePhoenix Contact

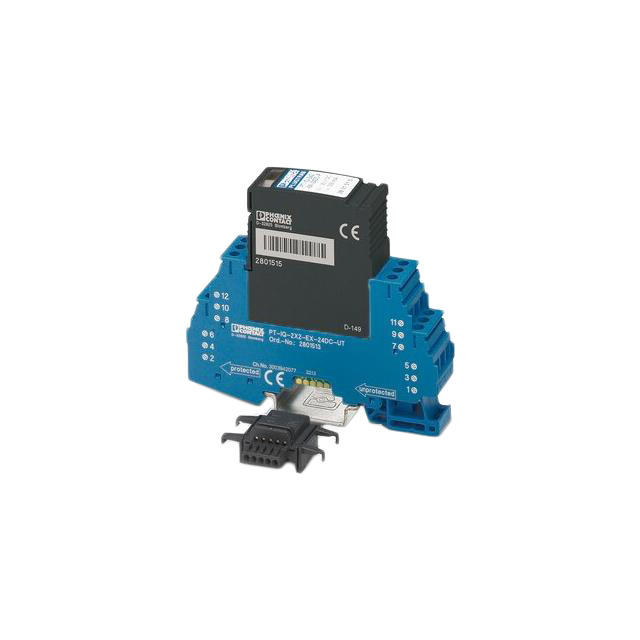

SPD 21VAC/30VDC MCOV 1 POLE
2801513
ActivePhoenix Contact
SPD 21VAC/30VDC MCOV 1 POLE
Description
General part information
2801513
SPD 21VAC/30VDC MCOV 1 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 2801513 |
|---|---|
| Approval Agency | cULus, UL, ATEX, EAC, cUL, CCC |
| Current - Discharge (Max) | 20 kA |
| Current - Discharge (Nom) | 10 kA |
| Form | Module, Base |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Voltage - Continuous Operating (Max) (MCOV) AC | 21 VAC |
| Voltage - Continuous Operating (Max) (MCOV) DC | 30 VDC |
| Voltage - Protection Level (VP) (2416) | 1.5 kV |
