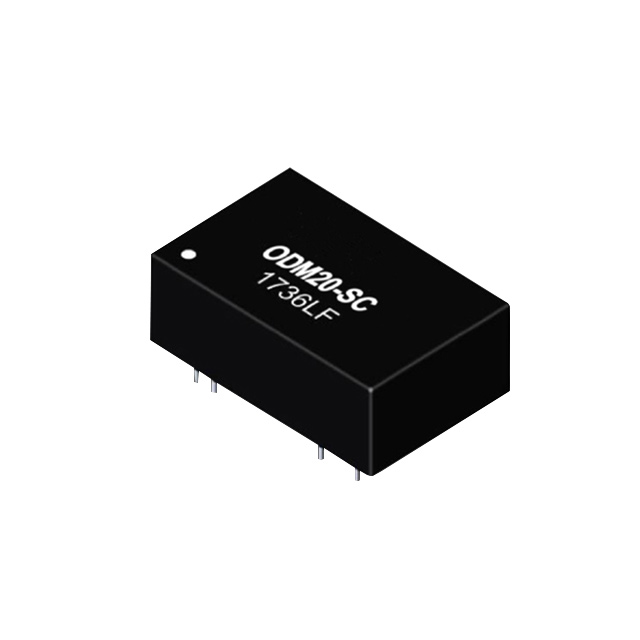

ODM20-12SC48

Active

ETA-USA

DC DC CONVERTER 12V 20W

Search across all available documentation for this part.

Active

ETA-USA

DC DC CONVERTER 12V 20W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 12V 20W

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Number of Outputs	Mounting Type	Package / Case	Applications	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Min) [Min]	Efficiency	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]
ETA-USA ODM20-12SC48	20 W	100 °C	-40 °C	1.67 A	1	Through Hole	5-DIP Module	Medical	12 V	5000 V	36 V	89 %	Isolated Module	12 mm	2 in	25.4 mm	25.4 mm	0.47 "	50.8 mm	75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.00

General part information

Isolated Module DC DC Converter 1 Output 12V 1.67A 36V - 75V Input
