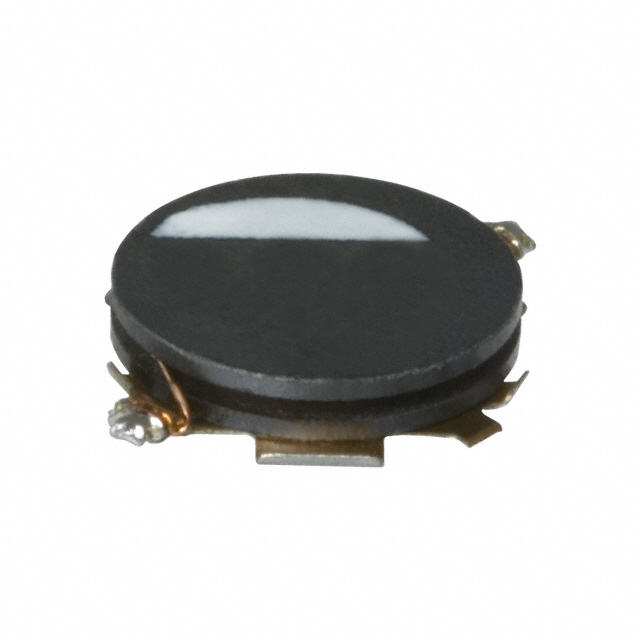

VLP5610T-220MR45
ObsoleteTDK Corporation
FIXED IND 22UH 450MA 960MOHM SMD
VLP5610T-220MR45
ObsoleteTDK Corporation
FIXED IND 22UH 450MA 960MOHM SMD
Description
General part information
VLP5610T-220MR45
22 µH Unshielded Wirewound Inductor 450 mA 960mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLP5610T-220MR45 |
|---|---|
| Current - Saturation (Isat) | 0.5 mA |
| Current Rating | 0.45 A |
| DC Resistance (DCR) (Max) | 960 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 20 % |
| Type | Wirewound |
